Two rooms, one outdoor unit: check the pair of heads first.
For the DLCMRA, the manufacturer publishes the exact list of allowed pairs. Choose the head for each room: you see which outdoor units on this page have that pair in the chart, which are to be confirmed, and their maximum heat at -15 °C.
One head per room: which outdoor units accept it?
Tap the head size for each room. The verdict comes from the manufacturer’s documents; the maximum heat at -15 °C from NEEP, ENERGY STAR Canada or the catalogue, as shown under each value.
Head for room 1
Head for room 2
The size of each head is decided at the visit, room by room. Here you only see what the manufacturer’s documents say about this pair.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
have this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
has this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
has this pair in the manufacturer’s chart.
The manufacturer publishes the DLCMRA pair chart (2018 catalogue, p. 48). For the DLCMHB, we read one range per head in the 2024 catalogue (p. 21), with no pair chart. No chart is published for the D5CMHA in the documents we hold.
| Outdoor unit | Verdict for the pair | Heads as % of outdoor unit | Max. at -15 °C | Max. at -30 °C | SEER2 | Max. heads | Indicative LogisVert | |
|---|---|---|---|---|---|---|---|---|
| D5CMHA · R-454B | ||||||||
| 18,000 BTU D5CMHAH18CAK | No chart published | 133% | 19,000 NEEP | 10,000 | 25 | to be confirmed | $2,400 | |

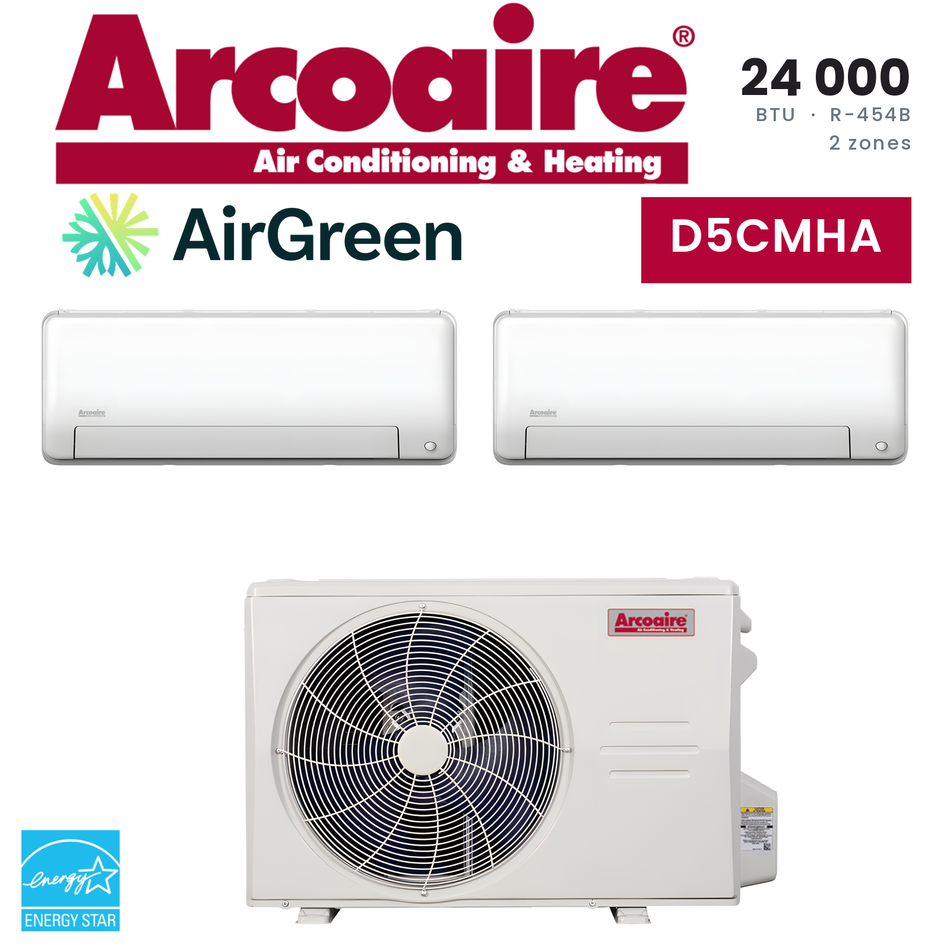

| 24,000 BTU D5CMHAH24DAK | No chart published | 100% | 25,000 NEEP | 14,000 | 24 | to be confirmed | $3,480 | |
| 30,000 BTU D5CMHAH30EAK | No chart published | 80% | 36,000 NEEP | 22,400 | 24 | to be confirmed | $4,200 | |
| 36,000 BTU D5CMHAH36EAK | No chart published | 67% | 36,000 NEEP | 22,400 | 23.1 | to be confirmed | $4,560 | |
| 48,000 BTU D5CMHAH48FAK | No chart published | 50% | 47,000 NEEP | 24,600 | 23 | to be confirmed | $5,400 | |
| 55,000 BTU D5CMHAH55FAK | No chart published | 44% | 47,000 NEEP | 26,400 | 22.3 | to be confirmed | $5,640 | |
| DLCMHB · R-410A, high heat · end of series | ||||||||
| 24,000 BTU DLCMHBH24CAK | Heads within the range we read in the catalogue, to be confirmed | 100% | 17,000 ENERGY STAR | not published | 22.3 | 3 | $2,160 | |
| 30,000 BTU DLCMHBH30DAK | Heads within the range we read in the catalogue, to be confirmed | 80% | 23,000 ENERGY STAR | not published | 22.4 | 4 | $1,350 | |
| 36,000 BTU DLCMHBH36DAK | Heads within the range we read in the catalogue, to be confirmed | 67% | 36,000 NEEP | not published | 20 | 4 | $4,200 | |
| 48,000 BTU DLCMHBH48EAK | Heads within the range we read in the catalogue, to be confirmed | 50% | 45,000 NEEP | not published | 21.2 | 5 | $4,680 | |
| DLCMRA · R-410A | ||||||||
| 18,000 BTU DLCMRAH18BAK | In the manufacturer’s chart | 133% | 13,800 2018 catalogue · not certified | not published | no SEER2 rating | 2 | none on our sheets | |
| 27,000 BTU DLCMRAH27CAK | In the manufacturer’s chart | 89% | 22,700 2018 catalogue · not certified | not published | no SEER2 rating | 3 | none on our sheets | |
| 36,000 BTU DLCMRAH36DAK | In the manufacturer’s chart | 67% | 26,200 2018 catalogue · not certified | not published | no SEER2 rating | 4 | none on our sheets | |
| 48,000 BTU DLCMRAH48EAK | In the manufacturer’s chart | 50% | 37,900 2018 catalogue · not certified | not published | no SEER2 rating | 5 | none on our sheets | |
Heat in BTU/h, the outdoor unit’s maximum for the whole system, not per room. For reference: in the DLCMRA chart, two heads add up to 50% to 133% of the outdoor unit’s size (our calculation from the chart). The DLCMRA is rated in SEER in the 2018 catalogue (21.1, 20.4, 21.4 and 20.5 from the 18,000 to the 48,000, non-ducted). The four DLCMRA units and the 30,000 DLCMHB are neither on NEEP’s cold-climate list nor ENERGY STAR cold-climate certified. Beyond 133% of the outdoor unit’s size (the highest ratio the manufacturer prints for a DLCMRA combination), we show no positive verdict for the DLCMHB or the D5CMHA: to be confirmed. For the DLCMHB, the 2024 catalogue (p. 21) gives each head’s range in merged cells with no borders: we read one range per unit, which we confirm before the quote. The DLCMHB is at the end of its series. The 24,000 D5CMHA LogisVert amount follows its heat at -8 °C per ENERGY STAR (29,000 BTU/h); NEEP lists 23,600 BTU/h for the same AHRI number.
All 14 ARCOAIRE 2-zone systems, right below.
Each product gives the outdoor unit, the matching heads and, when there is one, the AHRI number and the indicative LogisVert amount. Pricing by quote.
How far can the two heads go?
The line-set limits the manufacturer prints for each DLCMRA and DLCMHB outdoor unit, and those on its web page for the D5CMHA. For the DLCMRA and the DLCMHB, the maximum height difference is the same whether the outdoor unit sits above or below the heads.
| Outdoor unit | Total length | Farthest head | Height difference | |
|---|---|---|---|---|
| D5CMHA · R-454B | ||||
| D5CMHA 18,000 to 55,000 BTU | 197 to 262.5 ft family, depending on size; manufacturer web page | not published | 49 to 65 ft (lift or drop) family, depending on size; manufacturer web page | |
| DLCMHB · R-410A, high heat · end of series | ||||
| 24,000 BTU DLCMHBH24CAK | 197 ft (60 m) | 98 ft (30 m) | 49 ft (15 m) | |
| 30,000 BTU DLCMHBH30DAK | 262 ft (80 m) | 115 ft (35 m) | 49 ft (15 m) | |
| 36,000 BTU DLCMHBH36DAK | 262 ft (80 m) | 115 ft (35 m) | 65 ft (20 m) | |
| 48,000 BTU DLCMHBH48EAK | 328 ft (100 m) | 115 ft (35 m) | 65 ft (20 m) | |
| DLCMRA · R-410A | ||||
| 18,000 BTU DLCMRAH18BAK | 131 ft (40 m) | 82 ft (25 m) | 49 ft (15 m) | |
| 27,000 BTU DLCMRAH27CAK | 197 ft (60 m) | 98 ft (30 m) | 49 ft (15 m) | |
| 36,000 BTU DLCMRAH36DAK | 263 ft (80 m) | 115 ft (35 m) | 49 ft (15 m) | |
| 48,000 BTU DLCMRAH48EAK | 328 ft (100 m) | 115 ft (35 m) | 65 ft (20 m) | |
DLCMRA: catalogue 328-32-0499-00 (May 2018), p. 46. DLCMHB: catalogue DLS-001-AR-01 (March 2024), p. 47. D5CMHA: manufacturer web page (arcoaire.com), read November 5, 2026, values given in feet for the whole family, depending on size; no per-size value is published.
The same units, with three heads.
12 of the 14 units on this page are also sold as 3-zone systems: same unit, same AHRI number. Their maximum heat is then shared between three rooms instead of two.
Three things the manufacturer’s chart tells you.
The 18,000 BTU DLCMRA accepts only three pairs.
9,000 + 9,000, 9,000 + 12,000 and 12,000 + 12,000. An 18,000 head is not listed for it.
Catalogue 328-32-0499-00, 05/2018, p. 48On the 48,000 DLCMRA, a 9,000 head only goes with an 18,000 or a 24,000.
Neither 9,000 + 9,000 nor 9,000 + 12,000 is in its chart. The smallest pair in BTU is 12,000 + 12,000.
Catalogue 328-32-0499-00, 05/2018, p. 48On the DLCMRA, the heads do not have to go in at the same time.
The manufacturer says so. A 27,000 installed for two rooms still has a third connection free, provided the final mix is in the chart: for example 9,000 + 9,000 + 18,000 or 12,000 + 12,000 + 12,000.
Catalogue 328-32-0499-00, 05/2018, pp. 45, 46 and 48What people ask us about 2-zone systems.
One room heating, the other cooling: is that possible?
Not on the DLCMRA or the DLCMHB: the manufacturer states that these multi-zone systems cannot heat and cool at the same time (2018 catalogue, p. 45; 2024 catalogue, p. 46). Both rooms run in the same mode, each at its own temperature. The documents we hold for the D5CMHA do not say: we confirm it at the visit.
A cassette or a ducted unit instead of a wall head?
On the DLCMRA and the DLCMHB, yes: each family has its list of allowed indoor units, wall, cassette, ducted and console (2018 catalogue, p. 45; 2024 catalogue, p. 46). For the D5CMHA, brochure DLS-030 (p. 4) lists the Deluxe Series indoor units without saying which ones go with it: to be confirmed. The products on this page come with wall heads; another indoor unit changes the system and is confirmed at the visit.
Why “no chart published” for the D5CMHA?
The manufacturer publishes a pair chart for the DLCMRA; for the DLCMHB, we read one range per head in the catalogue, to be confirmed. For the D5CMHA, the brochure states up to six indoor units for the family, with no pair chart and no per-size detail, so we confirm the pair before the quote.
Is the heat at -15 °C per room?
No. It is the outdoor unit’s maximum heat for the whole system. It is shared between the two heads according to what each room calls for.
What about LogisVert?
It is indicative and taken from our product sheets. The DLCMRA units have none on our sheets, and the 24,000 D5CMHA amount ($3,480) follows its heat at -8 °C per ENERGY STAR (29,000 BTU/h; NEEP lists 23,600). Only Hydro-Québec confirms the amount granted.
How do you choose the head sizes?
At the visit, room by room: floor area, windows, insulation and orientation. Then we check that the outdoor unit accepts the pair.
Two rooms, a pair checked before the quote.
We size each room, choose the two heads, then check that the outdoor unit accepts them according to the manufacturer’s documents. You get a quote with the system and its AHRI number when it has one.
Sources checked on October 29, 2026
- ARCOAIRE, ductless catalogue 328-32-0499-00 (May 2018), pp. 6 and 45 to 48 (printed page numbers): DLCMRA, combination chart.
- ARCOAIRE, ductless catalogue DLS-001-AR-01 (March 2024), pp. 8, 21 and 46 to 48: DLCMHB.
- ARCOAIRE, Deluxe Series brochure DLS-030-AR-02 (June 2026), pp. 2 to 4: D5CMHA.
- Manufacturer web page (arcoaire.com), read November 5, 2026 (“D5CMHA - Deluxe Multi-Zone Heat Pump”): line-set lengths and height difference for the whole family.
- NEEP cold-climate heat pump list, records 390097, 390103, 390107, 390111, 390118, 390124, 405755, 405758, modified August 24, 2026, read October 28, 2026.
- ENERGY STAR, Certified Air-Source Heat Pumps, Canadian market (DLCMHBH24CAK 2545805, DLCMHBH30DAK 2545779), read October 28, 2026.
- airgreen.ca product sheets (sale status, indicative LogisVert amounts), re-read October 29, 2026.
LogisVert amounts are indicative. Only Hydro-Québec confirms the amount granted. Pricing by quote.
