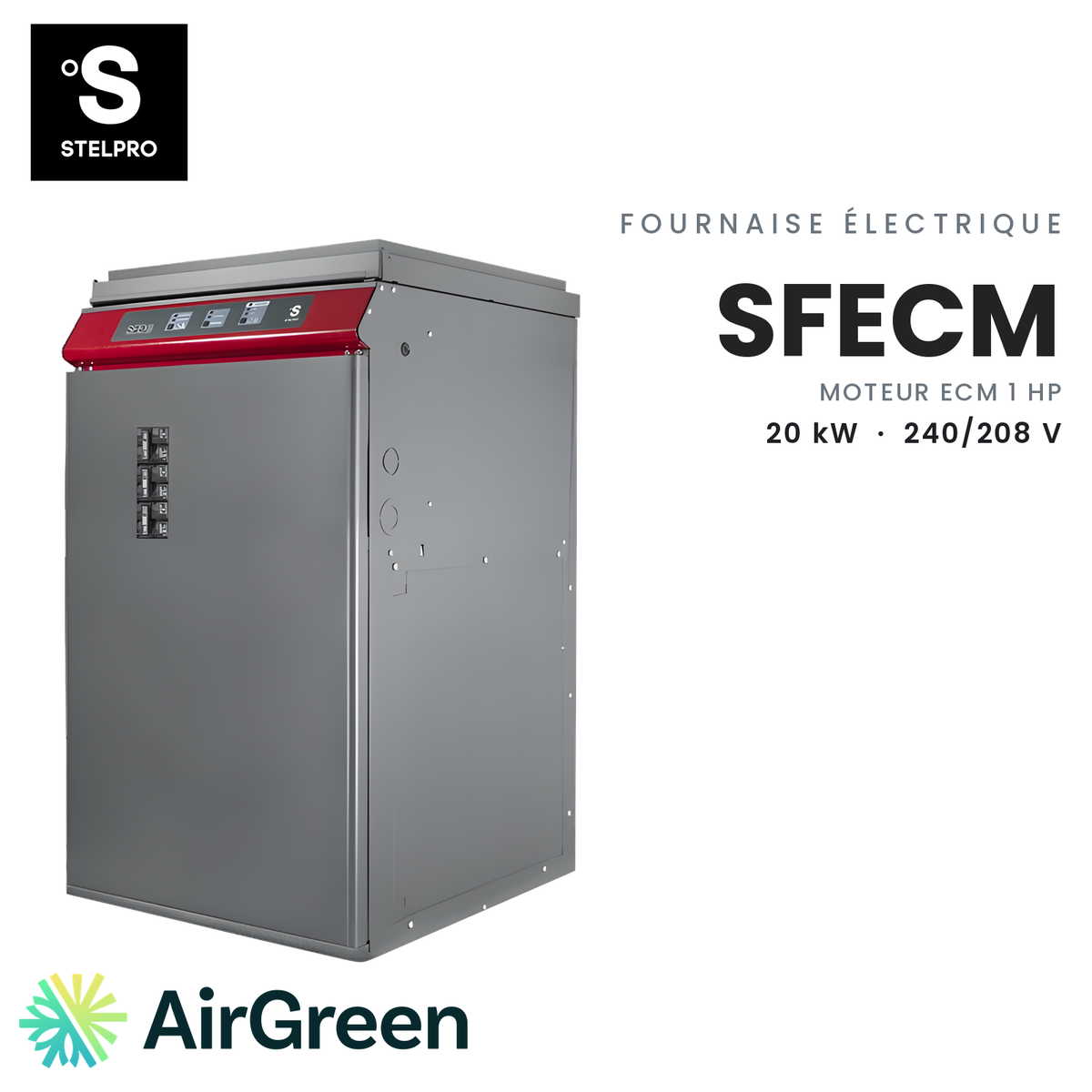

STELPRO SFECM SFECM20211HP Electric Furnace | 20 kW - 240V
The Stelpro SFECM20211HP electric furnace: 20 kW at 240 V and a 1 HP variable-speed ECM motor, for duct systems that need more air.
Model numberSFECM20211HP
514 316-2973 · sales@airgreen.ca
Quick facts
20 kW and a 1 HP ECM motor for large duct systems
What sets it apart
The Stelpro SFECM20211HP brings together the series’ two options: the SFECM version, with its variable-speed ECM motor, and the 1 HP motor Stelpro offers from 20 kW up. It produces 20 kW at 240 V with individually framed elements, modulated by an electronic board with Eco mode and a built-in temperature sensor. 7-position potentiometers set the airflow for each mode: continuous fan, W1 and W2 heating, Y1 cooling. Stelpro highlights the constant airflow and better efficiency of its ECM motors.
Who it is for
Picture a very spread-out bungalow on the South Shore, with a full basement and ducts running from one end to the other. The longer the duct system, the harder the blower has to work to deliver air to distant rooms. It is for this kind of house, or for a central heat pump coil that needs high airflow, that Stelpro offers the 1 HP motor. If your ductwork is more compact, the SFECM2021, with a 1/2 HP motor, may be enough: we compare the two on site.
Before ordering, we also confirm the airflow ranges specific to this code from Stelpro’s documentation. The final adjustment is made on site, once the furnace is connected, so that each room gets its share of air.
Heat pump and accessories
With a central heat pump, Stelpro provides two modes. In Type A, the factory setting, the heat pump is downstream and the elements stay off during its call. In Type B, it is on the return side and the furnace makes up for its loss of capacity in cold weather. The board also compensates during defrost. The Y2 terminal accepts two-stage cooling, and two other terminals take a humidifier and an air cleaner.
Electricity and installation
Stelpro publishes a total amperage of 88 A at 240 V and 77 A at 208 V, a voltage at which the output becomes 15 kW. The cabinet weighs 48 kg (105 lb). AirGreen, a family business established in Montreal for more than fifteen years, holds RBQ licence 5645-9605-01 for ventilation, refrigeration and electrical work.
After the free estimate and the written quote, our technicians install the furnace upflow, downflow (FSB2 adapter, sold separately) or horizontal, connect it to the ducts, make the electrical connection according to the manual and the rating plate, then set each airflow. The 20 x 20 x 1 in filter is not supplied.
Your project, our estimate
In Montreal, Laval, Longueuil, on the North Shore or the South Shore, ask for a free estimate. You receive a detailed written quote and, if needed, a financing option.
20 kW and a 1 HP ECM motor
The SFECM20211HP combines the SFE series’ modulating board with a 1 HP variable-speed ECM motor. As on every SFECM, 7-position potentiometers set the airflow for each mode.
- Large homes whose heat loss calculation comes to 20 kW
- Long or spread-out duct systems that need more air
- Pairing with a two-stage central heat pump (Y2 terminal)
- Systems with a humidifier or an air cleaner connected to the board

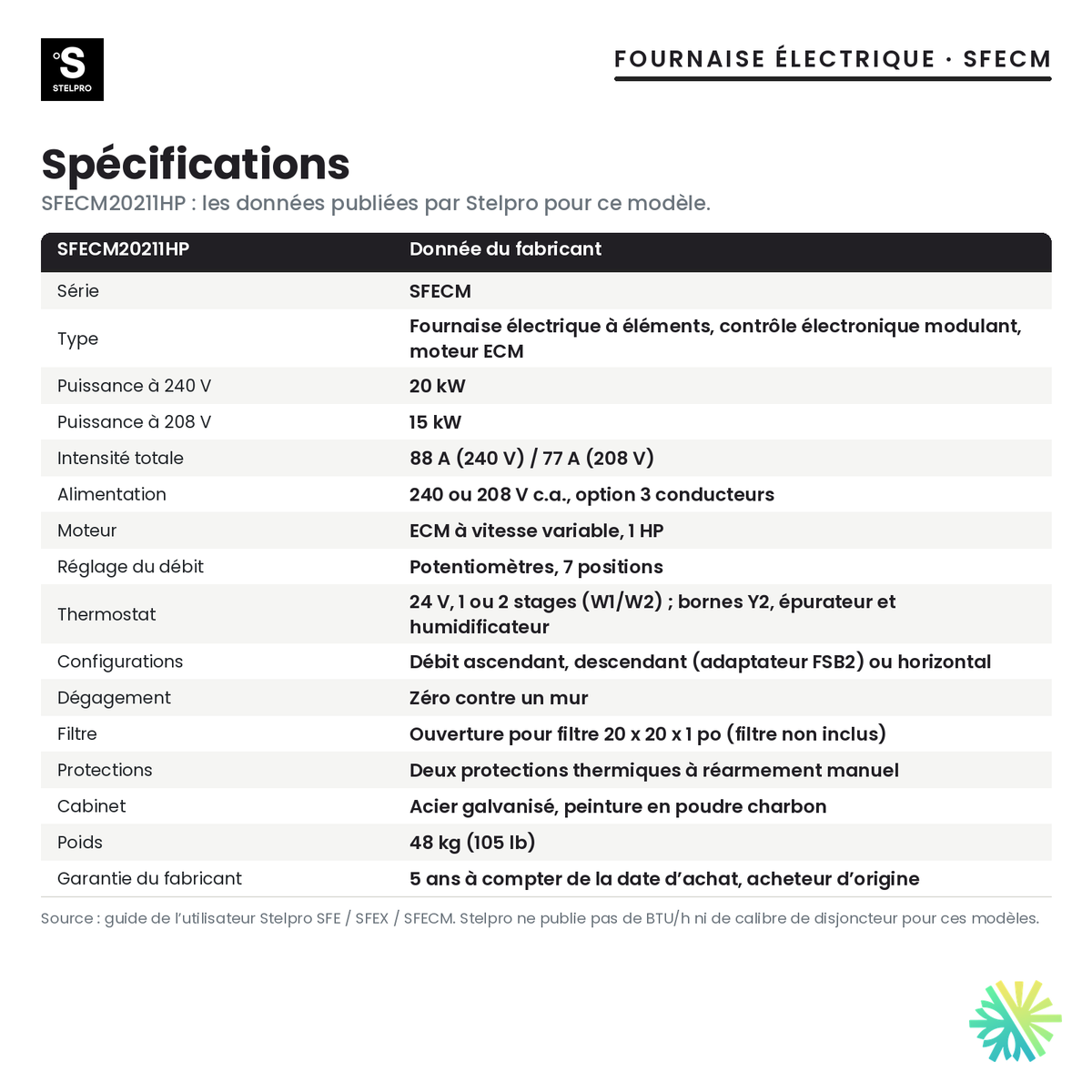

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone, an electric furnace is not a heat pump: it does not qualify for the LogisVert grant.
- Total amperage of 88 A at 240 V and 77 A at 208 V. Breaker and conductor sizes are confirmed from the installation manual and the rating plate.
- At 208 V, the published output is 15 kW.
- The airflow ranges specific to this code are confirmed from Stelpro’s documentation before ordering.
- 48 kg (105 lb) cabinet. Not included: 20 x 20 x 1 in filter, FSB2 adapter and SCOND neutral terminal block.
- Filter frame for a standard 20 x 20 x 1 in air filter (filter not included)
Manufacturer documents
Explore the range
Electric furnacesSee allSame brand
STELPROSee all
Frequently asked questions
What airflow does it deliver?
Airflow is set with 7-position potentiometers, mode by mode. The ranges published for this exact code are confirmed from Stelpro’s documentation: we check them before ordering and set the motor to suit your ductwork.
SFECM20211HP or SFECM2021?
Same 20 kW output and same board. The SFECM20211HP has a 1 HP ECM motor, the SFECM2021 a 1/2 HP motor. The 1 HP is for duct systems that need more air; it also brings the total amperage to 88 A at 240 V.
Can it be paired with a heat pump?
Yes. In Type A (factory setting), the heat pump is downstream and the elements do not heat during its call. In Type B, it is on the return side and the furnace makes up for its loss of capacity in cold weather. The Y2 terminal accepts two-stage cooling.
How much does it weigh?
Stelpro publishes 48 kg (105 lb). We plan the handling accordingly, particularly for a basement.
What warranty does Stelpro offer?
Stelpro warrants the furnace for 5 years from the date of purchase against defects in material or workmanship, for the original purchaser only. Disconnection, transport and installation are not covered by the manufacturer.
A 20 kW Stelpro SFECM furnace with a 1 HP motor, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
