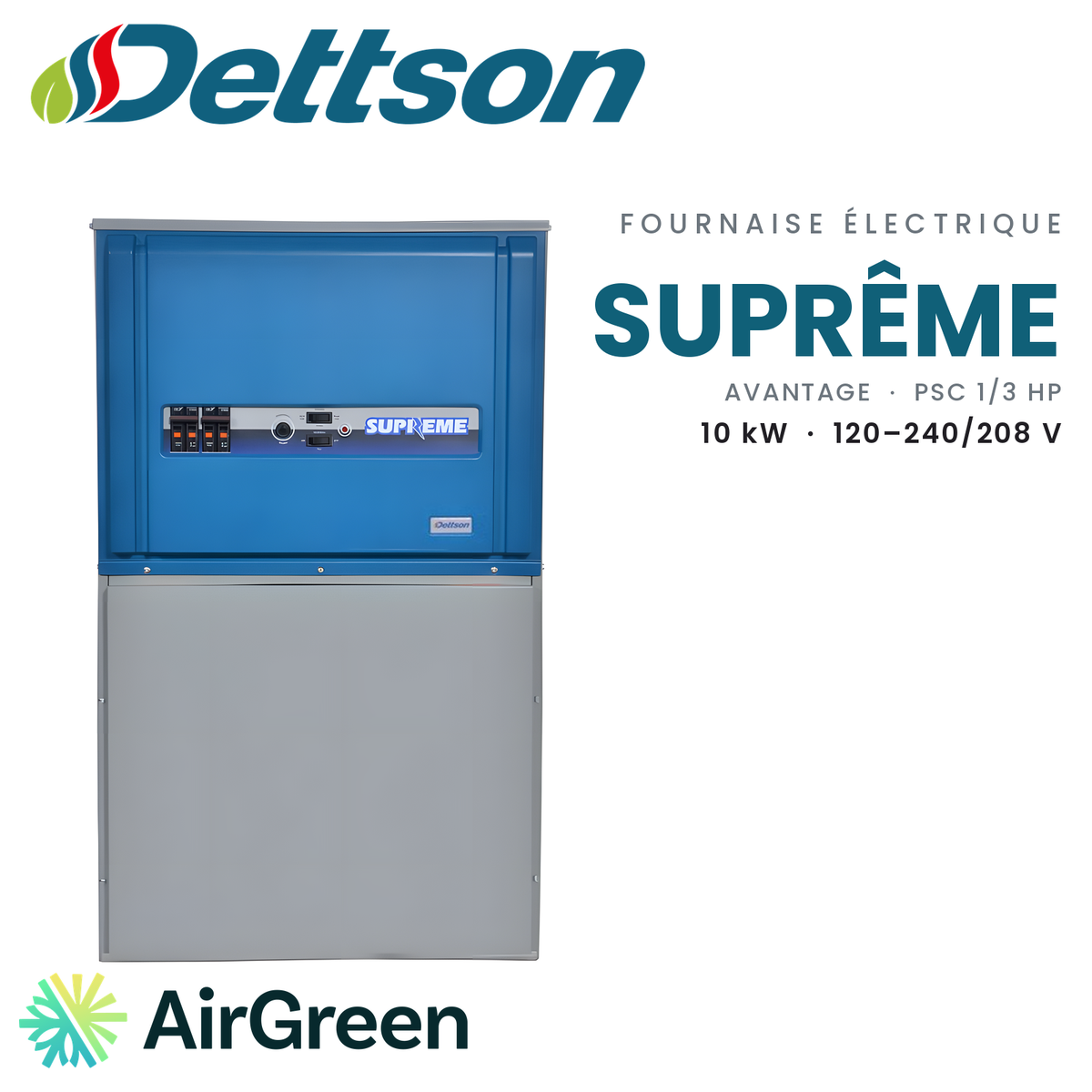

DETTSON Suprême Avantage SUP10-A120D12 Electric Furnace | 10 kW - 240V
Dettson’s 10 kW Suprême Avantage electric furnace, multiposition and approved for zero clearance, with a 1/3 HP PSC motor and front-panel controls.
Model numberSUP10-A120D12
514 316-2973 · sales@airgreen.ca
Quick facts
10 kW of central heating that bends to your space
Who the Dettson SUP10-A120D12 is for
Not every home needs a large furnace. A small house, a mobile home, a basement apartment or a ducted addition often needs modest output, but a unit that goes where there is room. The Dettson Suprême Avantage SUP10-A120D12 covers those cases: 10 kW at 240 V, 7.5 kW at 208 V, in a painted steel cabinet 36 1/2 in high.
It is approved by Dettson for zero clearance and for mobile home installation, and it accepts copper or aluminum supply wiring, a useful detail in some older homes.
An installation that adapts to the house
This is the furnace’s main strength: it is multiposition. It leaves the factory set for upflow, but can also be installed downflow, with the DFB-SUP base on a combustible floor, horizontal left or right, or suspended. In a basement where every inch counts, hanging it from the ceiling can free up the whole floor.
Day to day, everything is set from the front: a continuous fan switch, a low/high power switch and a light that comes on when the thermostat calls for heat. The breakers are also mounted at the front. The elements run in sequence, quietly according to Dettson, with a 5 kW first stage, and they can be replaced one by one if one ever needs changing.
Cooling and heat pumps
The four-speed, direct-drive 1/3 HP PSC motor delivers up to 1,150 CFM at 0.5 in. w.c. The furnace can therefore take an air conditioner or heat pump coil up to 3 tons, on the supply or the return side. One important point: Dettson forbids running the elements and the heat pump at the same time, which would cause overheating. We therefore set the system up for non-simultaneous operation.
What AirGreen’s installation covers
AirGreen is a family business established in Montreal for more than fifteen years, with RBQ licence 5645-9605-01 for ventilation, refrigeration and electrical work. This model needs a 3-wire supply (120–240/208 V) and, at 240 V, a breaker of no more than 60 A. During the free on-site estimate, we check the panel, choose the position and look at the condition of the ducts. You then receive a written quote that covers the installation, the electrical hookup, the thermostat and commissioning.
On warranty, Dettson covers parts for 5 years in residential use and 1 year in commercial use; labour is not covered by the manufacturer.
Have a project in mind?
We install electric furnaces in Montreal, Laval, Longueuil, the North Shore and the South Shore.
Ask for your free estimate and find out about the financing available for your new Dettson furnace.
Central electric heating that fits almost anywhere
The SUP10-A120D12 is a 10 kW electric furnace from the Suprême Avantage series. Dettson approves it for zero clearance and for mobile homes, and it installs upright, inverted, on its side or suspended.
- Small homes and mobile homes (installation approved by Dettson)
- Tight spaces: closet, mechanical room, basement ceiling
- Buildings supplied at 208 V, where it delivers 7.5 kW
- Adding a central air conditioner or heat pump up to 3 tons
Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: not eligible for the LogisVert grant. An electric furnace is not a heat pump.
- 3-wire supply, 120–240/208 V, single phase, 60 Hz. At 240 V, Dettson lists a 59.3 A ampacity and a 60 A maximum breaker.
- With a heat pump, Dettson forbids running the elements and the heat pump at the same time, which would cause overheating: the system must be non-simultaneous.
- In downflow on a combustible floor, the DFB-SUP base is required.
- Dettson warranty: parts 5 years in residential use, 1 year in commercial use. Labour is not covered by the manufacturer.
- The coil, outdoor unit and thermostat are not included.
Manufacturer documents
Explore the range
Electric furnacesSee allSame brand
DETTSONSee all
Frequently asked questions
What power supply does it need?
Dettson lists 120–240/208 V, single phase, 60 Hz, 3 wire. At 240 V: 48.3 A total current, 59.3 A ampacity and a 60 A maximum breaker. We check your panel during the free estimate.
Can it be suspended or installed on its side?
Yes. Dettson allows upflow (factory setup), downflow with the DFB-SUP base on a combustible floor, horizontal left or right, and suspended installation.
Can a heat pump be added?
Yes, with a coil up to 3 tons, on the supply or the return side. The elements and the heat pump must never run at the same time: the thermostat or a kit designed for it must handle the switchover. Dettson also offers a heat pump interface kit, the K03081.
What does it deliver at 208 V?
7.5 kW, including a 3.8 kW first stage, or 25,628 BTU/h. Total current is then 41.8 A and ampacity 51.7 A.
What is the warranty?
Dettson covers parts for 5 years in residential use and 1 year in commercial use. Labour is not covered by the manufacturer.
Does it qualify for the LogisVert grant?
No. Sold alone, an electric furnace is not a heat pump and does not qualify.
A 10 kW Dettson Suprême, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
