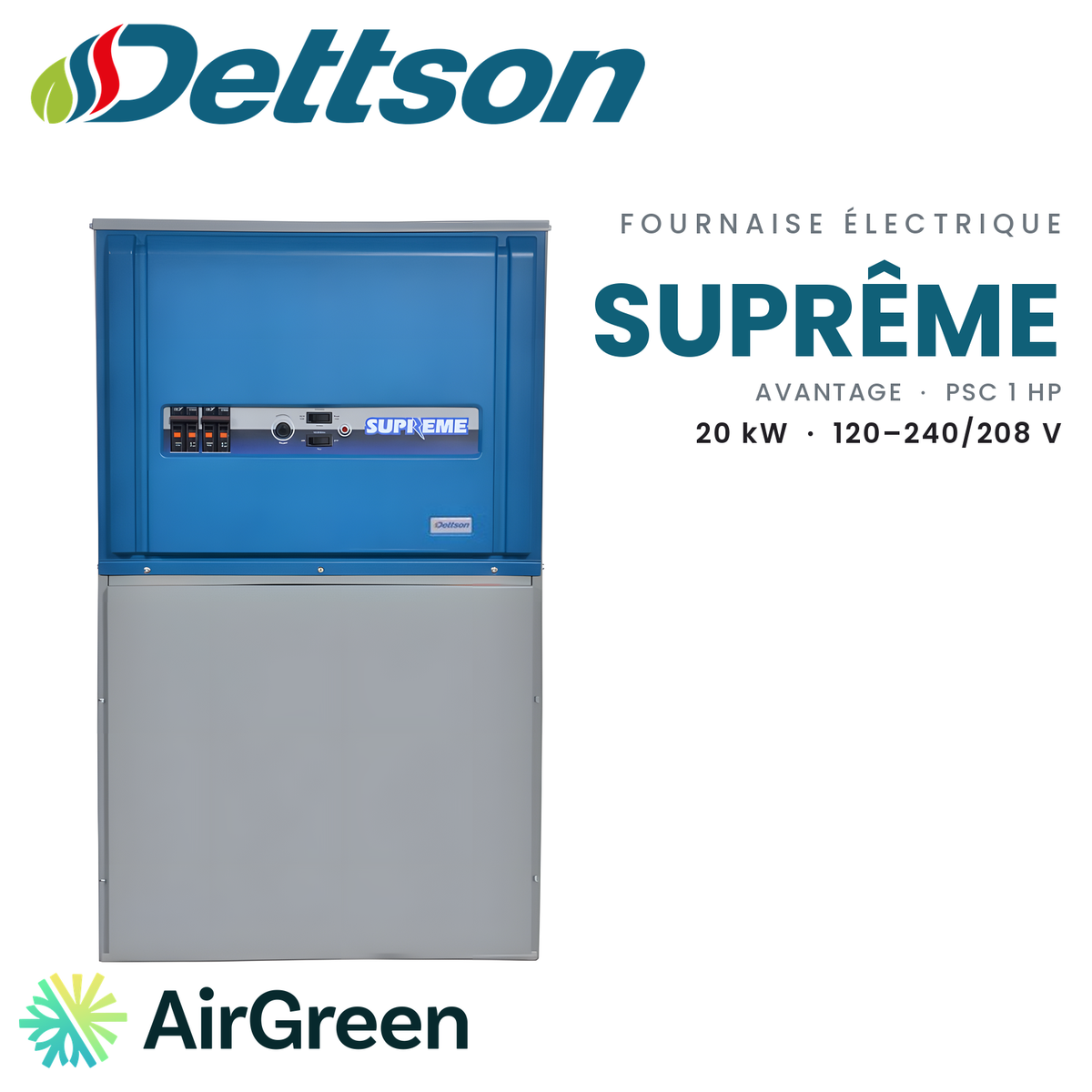

DETTSON Suprême Avantage SUP20-A120D20 Electric Furnace | 20 kW - 240V

A 20 kW furnace built for large central air conditioning

What changes with the 1 HP motor

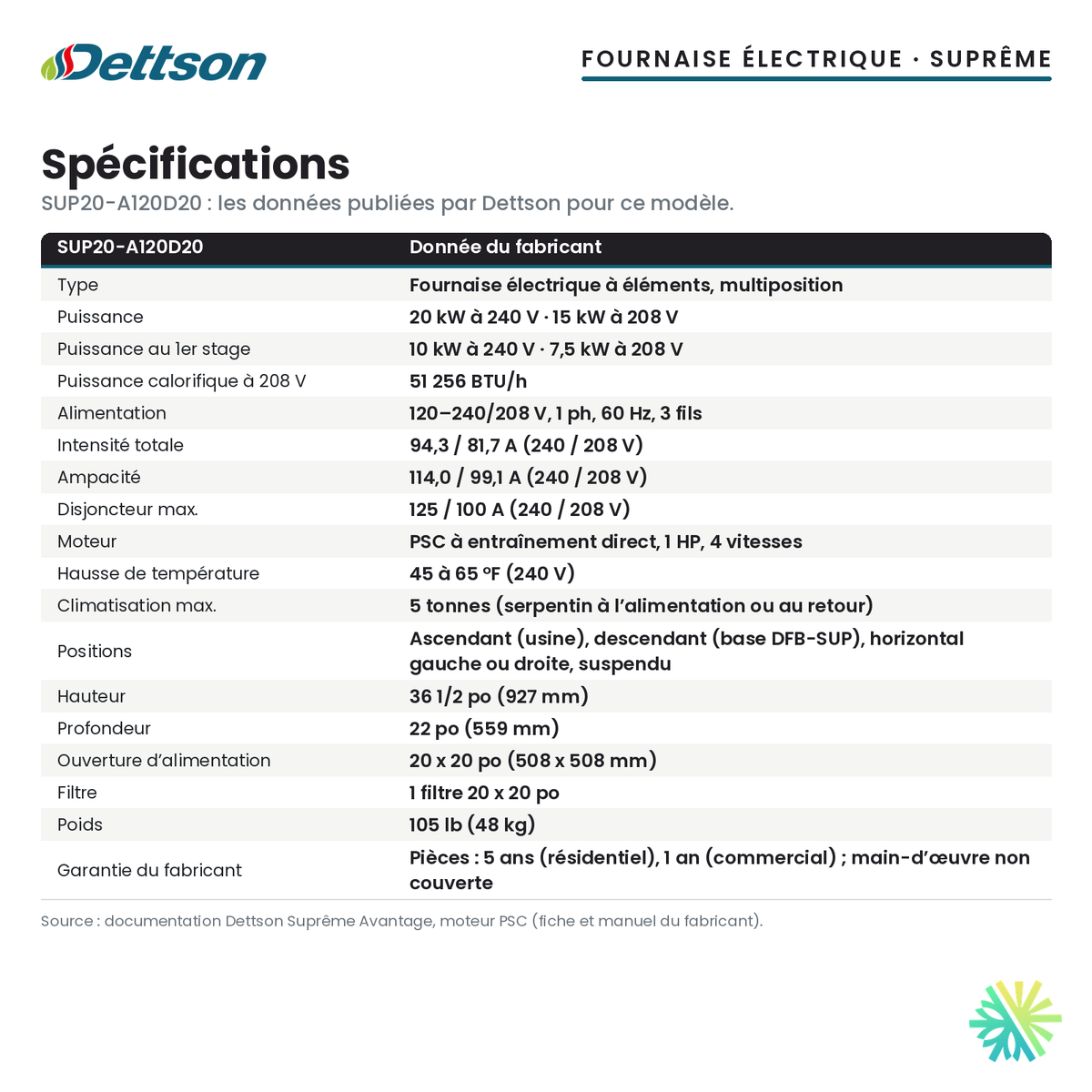

In Dettson’s Suprême Avantage series, the models differ by heating output, but also by blower. The SUP20-A120D20 gets the largest PSC motor in the Avantage range: 1 HP, direct drive and 4 speeds, with a 12 x 9 blower wheel. This lets it accept an air-conditioner or heat-pump coil of up to 5 tons, while the versions with a smaller motor accept less cooling.

For heating, it delivers 20 kW at 240 V and 15 kW at 208 V, or 51,256 BTU/h. The elements switch on in sequence, with a 10 kW first stage at 240 V, and Dettson publishes a temperature rise of 45 to 65 °F at 240 V.

The projects that benefit

This model is aimed at large ducted homes in Laval, on the South Shore or on the North Shore that want high-capacity central air conditioning, or a large central heat pump with the elements as backup. With a heat pump, Dettson does not allow the elements and the heat pump to run at the same time; the K03081 interface makes it possible to follow that rule.

A point of transparency: for this 1 HP motor on a three-wire supply, Dettson’s sheet and manual do not publish the same airflows. Rather than quoting an uncertain figure, we choose the speed on site based on the coil and your ducts, and we check the result at commissioning.

Electrical work, planned from the start

The furnace is supplied at 120–240/208 V single-phase on three wires. Dettson calls for a 125 A maximum breaker at 240 V (100 A at 208 V) and publishes a 114.0 A ampacity at 240 V. We assess your electrical service during the estimate and state in the quote whether it can take this circuit.

What AirGreen does

AirGreen, a family business established in Montreal for more than fifteen years, holds RBQ licence 5645-9605-01 for ventilation, refrigeration and electrical work. We take care of:

• the free on-site estimate and the written quote;
• setting the furnace, upflow, downflow with the DFB-SUP base depending on the floor, horizontal or suspended;
• the electrical connection, the duct connections and integrating the coil;
• setting the motor speed and commissioning.

Dettson covers parts for 5 years in residential use; labour is not covered by the manufacturer. We serve Montreal, Longueuil and the whole region.

Air conditioning on the horizon

Ask for a free estimate: we size the furnace and the coil together, then you receive a written quote. Financing is available to spread out the cost of the project.
