KINGHOME Ultra Heat R32 2-Zone Heat Pump | 24,000 BTU | Montréal, Laval, South Shore, North Shore

In stock
SKU: KM24X6O-99
24,000BTU/h · 2 heads
−30 °Cheats down to
$2,832LogisVert, indicative
ENERGY STAR® cold climateWi-Fi includedR-32Up to 3 heads
Talk to a technician · 514 316-2973
Outdoor unit KM24X6OPossible indoor models KW09XQ19CDI, KW12XQ19CDIAHRI 215708442· ENERGY STAR 3798992
In short

The Kinghome Ultra Heat 2 zones 24 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. ENERGY STAR cold-climate certified, it delivers 23,600 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $2,832 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

2 rooms, one outdoor unit.

Figures come from the manufacturer’s data and the AHRI certification.

AHRI 215708442
23,600BTU/h at −8 °C
−30 °Cstill heating
2 → 3heads, on the same unit
2.45COP at −8 °C
$2,832LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

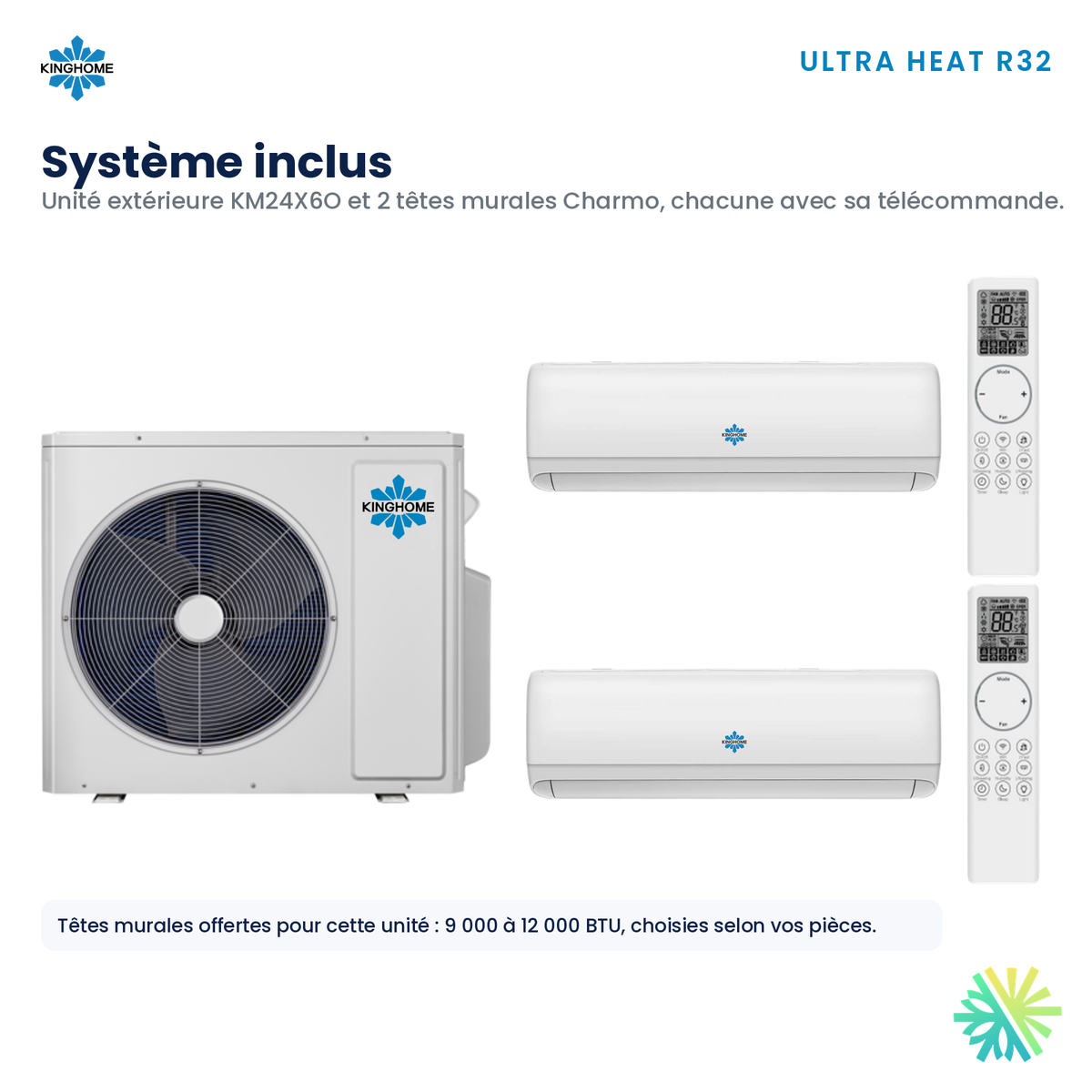

KM24X6O

Outdoor unit

One compressor for the whole house. It supplies up to 3 heads.

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
2
24,000BTU
Here3
30,000BTU
234
36,000BTU
234
42,000BTU
2345
48,000BTU
2345
60,000BTU
23456

Kinghome Ultra Heat 2 zones 24 000 · 2 zones

23,600 BTU/h
at −8 °C
$2,832
LogisVert

Up to 3 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 90 % of its rated capacity.

Tap a temperature: capacity, efficiency and the cost of one hour of heating.

07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification.

SEER2 · seasonal cooling21.0
Scale 1 – 30
HSPF2 · seasonal heating10.0
Scale 1 – 15
EER2 · cooling in peak heat13.3
Scale 1 – 20
COP at −15 °C2.0
Scale 0 – 4
09 · LogisVert grant

A grant you can calculate, not guess.

23,600 BTU/h÷ 1,000 ×$120=$2,832

The capacity at −8 °C. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).

Set for this system (AHRI 215708442). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone2 wall units
On the wall1 outdoor unit2 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$2,832 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

11 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

25.98 in
KM24X6ODepth 15.83 in
37.95 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
25 A max. breaker
MCA 20 A · 220 V
Outdoor unit
Head 1
Head 2
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 20 A, 25 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
12 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

26
41
58
20 dB(A)3040506070
26 Reference head, lowest speed41 Reference head, highest speed58 Outdoor unit
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
13 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)24,000 BTUSheet
SEER2 (seasonal cooling efficiency)21.0AHRI
EER2 (instant cooling efficiency)13.3AHRI
HSPF2 (seasonal heating efficiency, region IV)10.0AHRI
Heating
Capacity at −8 °C23,600 BTU/h · COP 2.45Sheet
Capacity at −15 °C21,600 BTU/h · COP 2.0Sheet
Capacity at −30 °C (max.)17,400 BTU/h · COP 1.5Sheet
Heats down to−30 °CSheet
Zones and heads
Zones on this product2 Zones (Double Zone)Sheet
Maximum zones3 Zones (Triple Zone)Sheet
Possible indoor modelsKW09XQ19CDI, KW12XQ19CDISheet
Indoor dimensions (W × D × H)32.87 x 7.87 x 10.83 inSheet
Vertical louversAutoSheet
Horizontal louversAutoSheet
Airflow (reference head)353 CFMSheet
Indoor sound (reference head)26 – 41 dB(A)Sheet
Installation
Outdoor unit (W × D × H)37.95 x 15.83 x 25.98 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound58 dB(A)Sheet
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)20 ASheet
MOP (maximum overcurrent protection)25 ASheet
RefrigerantR-32Sheet
Wi-FiInclusSheet
Certifications and warranty
AHRI215708442AHRI
ENERGY STARYes · cold climate · ID 3798992Sheet
LogisVert grant (indicative)$2,832Sheet
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 6 yrsSheet
AirGreen extended warrantyPossibleSheet
14 · Official brochures

The manufacturer’s documentation, as PDF.

15 · Description

Everything we have written about this system.

One head on the ground floor, one head upstairs

In a multi-storey house, comfort rarely comes down to a single room. The ground floor cools off while the upstairs builds up heat, and the primary bedroom becomes hard to live in as early as late spring. The solution we suggest most often in a cottage, a semi-detached or a townhouse is simple: one wall-mounted head per level, connected to a single outdoor unit. That's exactly the job of this 24,000 BTU KINGHOME Ultra Heat R32 multi-zone heat pump set up in two zones.

What sets it apart from the smallest multi-zone model in the series is its reserve in cold weather and its room to grow. This size is meant for houses in Laval, on the North Shore and on the South Shore, which are more exposed to wind and cold than a condo surrounded by neighbours, and for Montréal homeowners who want to serve two levels today while keeping the option of adding a room later.

Why two levels call for two zones

Warm air rises. A single wall-mounted heat pump installed on the ground floor heats the living area properly in winter, but it almost never reaches the bedrooms in summer, because the cool air stays downstairs. Conversely, a unit placed upstairs leaves the ground floor without effective heating. With two zones, each level has its own set point: you can keep the upstairs cooler for the night and the ground floor comfortable during the day, without one dictating how the other runs.

The KM24X6O outdoor unit accepts the CHARMO multi-zone wall-mounted heads KW09XQ19CDI (9,000 BTU) and KW12XQ19CDI (12,000 BTU). Two 12,000 BTU heads give 24,000 BTU, exactly the outdoor unit's nominal capacity: that's the combination we choose when the ground floor is open-concept and the upstairs has several bedrooms off the landing. A 9,000 BTU head is often enough for the upstairs of a narrower townhouse.

Reserve capacity in extreme cold makes the difference

For an exposed house, the deciding figure is the published capacity at low temperatures. Here are the values listed on NEEP for this combination with wall-mounted heads (AHRI No. 215708442):

  • At -8.3 °C: 23,600 BTU/h, COP of 2.45.
  • At -15 °C: 21,600 BTU/h, COP of 2.0, or 90% of nominal capacity.
  • At -30 °C: 17,400 BTU/h, COP of 1.5, at the heating operating limit.

Keeping 90% of its capacity at -15 °C is what sets this size apart from the smallest model in the series, whose curve drops faster as the cold sets in. For two zones covering two full levels, that reserve lets the heat pump carry a bigger share of the winter before the baseboards or the electric furnace take over. The unit carries the ENERGY STAR cold climate designation, the certification that identifies heat pumps truly designed for a Québec winter.

An installation that can grow

The KM24X6O is designed for up to three zones. In a two-zone setup, that leaves one connection free on the outdoor unit. If you plan to finish the basement or set up an office in the next few years, a third head can often be added without replacing the outdoor unit, as long as the total head capacity and the piping route allow it. We take this into account from the first visit: the unit location and the line routing are chosen so as not to close that door.

Efficiency and features

The system is certified at 21 SEER2, 10 HSPF2 and 13.3 EER2. That last figure, the efficiency on the hottest days, is one of the best in the multi-zone range: the upstairs bedroom cools down in July without sending the bill through the roof. The variable-speed rotary compressor and the electronic expansion valve adjust the refrigerant flow to each head's demand.

Wi-Fi is included, and each zone can be adjusted from the KINGHOME PLUS app or by voice command. The wall-mounted heads offer vertical and horizontal auto louvres, 3D airflow, humidity control, self-cleaning and refrigerant leak detection. The system runs on R-32, with MAX Guard anti-corrosion protection and a heater in the outdoor unit's base pan for defrost water.

What we check before installation

Every multi-storey house has its own constraints. Here are the points we validate during the assessment in Montréal, Laval, Longueuil, on the North Shore and the South Shore.

Electrical supply

The unit requires a 220 V supply, an MCA of 20 A and an MOP of 25 A. Both heads are powered by the outdoor unit: only one circuit to add, where two independent units would need two. We check the space in the panel and the load already connected before confirming the quote.

Outdoor unit location

The unit measures 37.95 x 15.83 x 25.98 inches, and its sound level is rated at 58 dB(A). In a semi-detached or a townhouse, we avoid placing it under a bedroom window, yours or your neighbour's. We prefer a wall bracket that keeps it above the snow and lets defrost water drain freely, on the side of the house least exposed to prevailing winds.

Piping route

Each head gets its own pair of 1/4 and 3/8 inch lines. The upstairs line is the longest: we run it up the façade in a painted line cover, or inside a closet when the structure allows. Each line is vacuumed, and the leak test is done before startup.

Condensate drain

In summer, the upstairs head produces condensation continuously. The drain has to keep a steady slope all the way outside; otherwise, we install a condensate pump. A poorly installed upstairs drain is the most common cause of water damage we see on rushed installations.

Certification and LogisVert assistance

Reference numbers: AHRI 215708442 and ENERGY STAR ID 3798992. This combination has an indicative LogisVert amount of $2,832, calculated according to the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted.

Why go with AirGreen

  • Salaried refrigeration technicians who install every line and every drain themselves.
  • Civil liability insurance of $5,000,000.
  • Warranty registration handled by our team.
  • After-sales service that keeps your installation file on hand.

Request your free estimate: we assess both levels, choose the heads to suit each space and give you an accurate quote.

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.

16 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 23,600 BTU/h at −8 °C, 21,600 at −15 °C and 17,400 at −30 °C.

How many heads can I connect?

Up to 3 on this outdoor unit. This product is configured for 2 heads.

How much is the LogisVert grant?

$2,832. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, cold climate, ID 3798992.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 17,400 BTU/h with a COP of 1.5.

Is it noisy?

Indoors, the reference head goes down to 26 dB(A). Outdoors, 58 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.

AirGreen

A multi-zone system is planned room by room. At your home.

We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.

RBQ 5645-9605-01Ventilation 15.8, refrigeration 15.10, electrical 16
We handle the circuitOur licence covers the electrical work
LogisVert : $2,832Indicative amount
Beware of scamsHydro-Québec does no phone or door-to-door solicitation for LogisVert
SourcesCosts: Hydro-Québec Rate D, 11.142 ¢/kWh (second tier, since 1 April 2026). Amounts shown are estimates; only the responsible bodies confirm the grant awarded.
