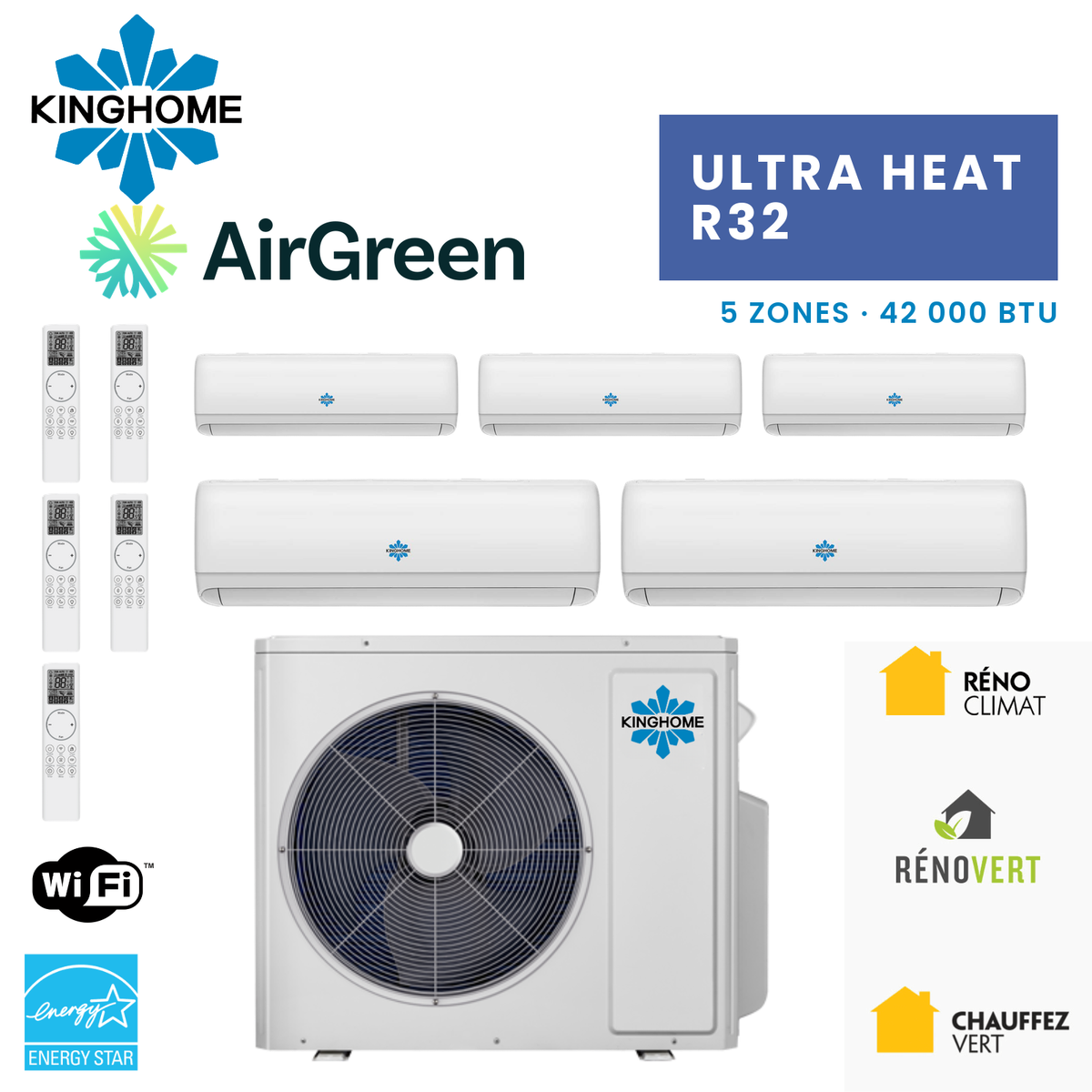

KINGHOME Ultra Heat R32 5-Zone Heat Pump | 42,000 BTU | Montréal, Laval, South Shore, North Shore

In stock
SKU: KM42X6O-99999
42,000BTU/h · 5 heads
−30 °Cheats down to
$5,340LogisVert, indicative
ENERGY STAR® cold climateWi-Fi includedR-32Up to 5 heads
Talk to a technician · 514 316-2973
Outdoor unit KM42X6OPossible indoor models KW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDIAHRI 215708445· ENERGY STAR 3798995
In short

The Kinghome Ultra Heat 5 zones 42 000 multi-zone heat pump heats and cools 5 rooms with a single outdoor unit. ENERGY STAR cold-climate certified, it delivers 44,500 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $5,340 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

5 rooms, one outdoor unit.

Figures come from the manufacturer’s data and the AHRI certification.

AHRI 215708445
44,500BTU/h at −8 °C
−30 °Cstill heating
5heads
2.4COP at −8 °C
$5,340LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

KM42X6O

Outdoor unit

One compressor for the whole house. It supplies up to 5 heads.

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
2
24,000BTU
23
30,000BTU
234
36,000BTU
234
42,000BTU
234Here
48,000BTU
2345
60,000BTU
23456

Kinghome Ultra Heat 5 zones 42 000 · 5 zones

44,500 BTU/h
at −8 °C
$5,340
LogisVert

Up to 5 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 90 % of its rated capacity.

Tap a temperature: capacity, efficiency and the cost of one hour of heating.

07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification.

SEER2 · seasonal cooling21.0
Scale 1 – 30
HSPF2 · seasonal heating10.0
Scale 1 – 15
EER2 · cooling in peak heat13.0
Scale 1 – 20
COP at −15 °C2.1
Scale 0 – 4
09 · LogisVert grant

A grant you can calculate, not guess.

44,500 BTU/h÷ 1,000 ×$120=$5,340

The capacity at −8 °C. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).

Set for this system (AHRI 215708445). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone5 wall units
On the wall1 outdoor unit5 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$5,340 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

11 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

32.52 in
KM42X6ODepth 16.81 in
40.16 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
45 A max. breaker
MCA 30 A · 220 V
Outdoor unit
Head 1
Head 2
Head 3
Head 4
Head 5
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 30 A, 45 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
12 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

26
41
63
20 dB(A)3040506070
26 Reference head, lowest speed41 Reference head, highest speed63 Outdoor unit
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
13 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)42,000 BTUSheet
SEER2 (seasonal cooling efficiency)21.0AHRI
EER2 (instant cooling efficiency)13.0AHRI
HSPF2 (seasonal heating efficiency, region IV)10.0AHRI
Heating
Capacity at −8 °C44,500 BTU/h · COP 2.4Sheet
Capacity at −15 °C37,800 BTU/h · COP 2.1Sheet
Capacity at −30 °C (max.)28,400 BTU/h · COP 1.5Sheet
Heats down to−30 °CSheet
Zones and heads
Zones on this product5 ZonesSheet
Maximum zones5 ZonesSheet
Possible indoor modelsKW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDISheet
Indoor dimensions (W × D × H)32.87 x 7.87 x 10.83 inSheet
Vertical louversAutoSheet
Horizontal louversAutoSheet
Airflow (reference head)353 CFMSheet
Indoor sound (reference head)26 – 41 dB(A)Sheet
Installation
Outdoor unit (W × D × H)40.16 x 16.81 x 32.52 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound63 dB(A)Sheet
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)30 ASheet
MOP (maximum overcurrent protection)45 ASheet
RefrigerantR-32Sheet
Wi-FiInclusSheet
Certifications and warranty
AHRI215708445AHRI
ENERGY STARYes · cold climate · ID 3798995Sheet
LogisVert grant (indicative)$5,340Sheet
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 6 yrsSheet
AirGreen extended warrantyPossibleSheet
14 · Official brochures

The manufacturer’s documentation, as PDF.

15 · Description

Everything we have written about this system.

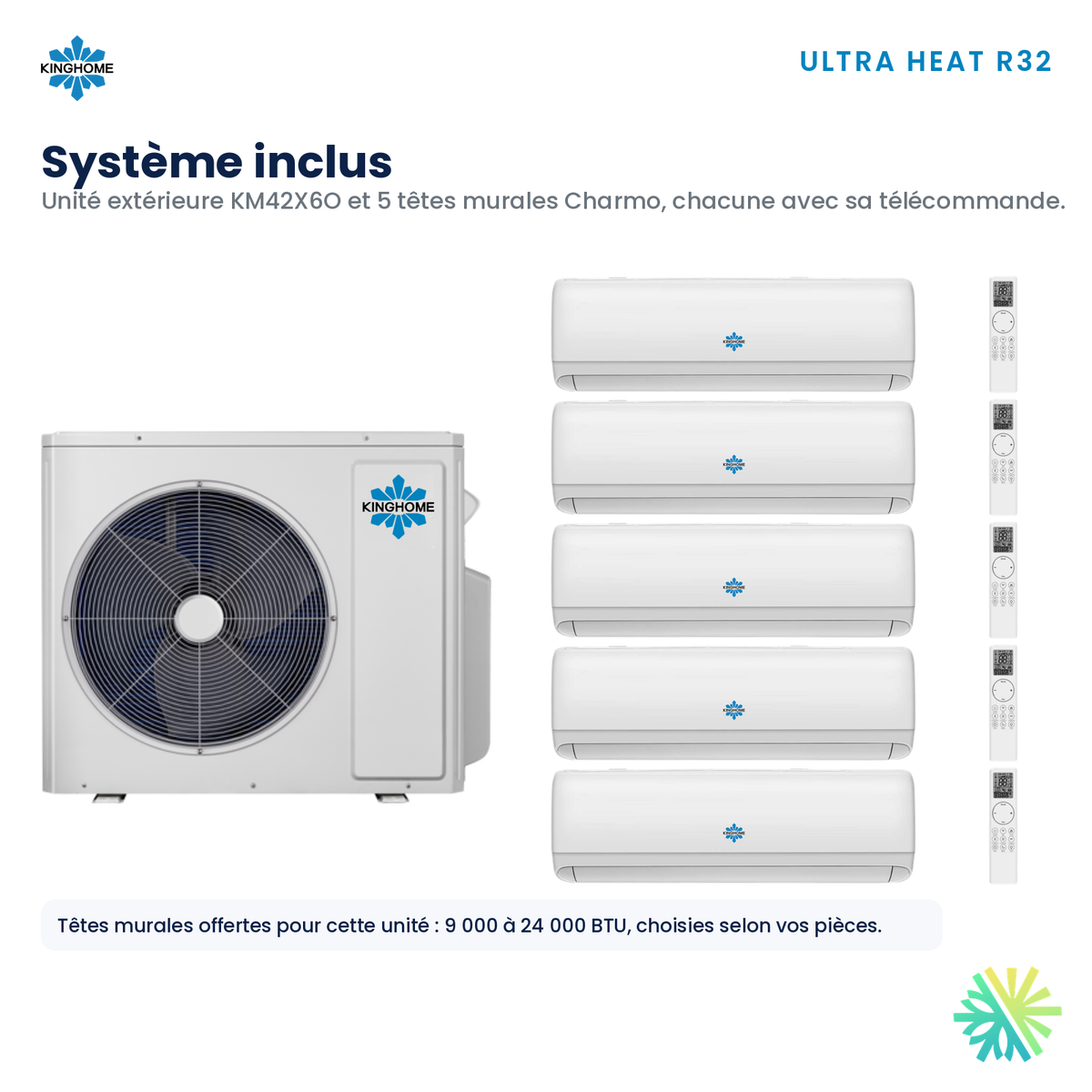

Five rooms on one unit: the full 42,000 BTU configuration

This version uses all five connections on the KM42X6O outdoor unit. It's the multi-zone heat pump we recommend for a house where almost every occupied room needs its own head: a three- or four-bedroom house with a living room, a home office or a family room in the basement. The more zones you add, the more the design matters, and this is the version where the difference between a planned installation and an improvised one shows the most.

We install it in single-family homes in Laval, on the North Shore and on the South Shore, and in townhouses in Montréal and Longueuil where every room is closed off and a single central head would never reach the bedrooms.

Five heads: why the total exceeds the nominal capacity

The compatible heads are the CHARMO KW09XQ19CDI (9,000 BTU), KW12XQ19CDI (12,000 BTU), KW18XQ19CDI (18,000 BTU) and KW24XQ19CDI (24,000 BTU). With five zones, even five 9,000 BTU heads slightly exceed the outdoor unit's 42,000 BTU. A typical layout would be a 12,000 BTU head in the living room and four 9,000 BTU heads in the bedrooms and the office.

The manufacturer allows for this oversizing on multi-zone systems, and it makes sense: five rooms almost never reach their peak demand at the same time. The bedrooms are heated at night, the living room in the evening, the office during the day. The variable-speed compressor and the electronic expansion valves distribute the refrigerant according to each head's actual demand. The condition is that each head is sized for its room, not picked as large as possible just to be safe. A head that's too big in a small bedroom short-cycles, dehumidifies poorly in summer and takes a share of capacity the other rooms need.

How capacity is shared in winter, when every room calls for heat

In extreme cold, all the zones call for heat at the same time, and that's when the figures listed on NEEP (AHRI No. 215708445) need to be read honestly:

  • At -8.3 °C: 44,500 BTU/h, COP of 2.4, or about 106% of nominal capacity.
  • At -15 °C: 37,800 BTU/h, COP of 2.1.
  • At -30 °C: 28,400 BTU/h, COP of 1.5, the heating operating limit.

At -30 °C, about 68% of nominal capacity is still available, and it's shared among five rooms. For a house this size, we therefore always keep the existing heating, baseboards or furnace, as backup during extreme cold snaps. The rest of the winter, the heat pump does most of the work. The unit carries the ENERGY STAR cold climate designation, and these values are listed on NEEP for a configuration with ductless heads.

A single circuit for five rooms

This is the most concrete argument for the five-zone version. Five separate wall-mounted heat pumps would need five circuits in the panel, five outdoor units on the outside walls and five units to clear of snow. Here, the outdoor unit requires a 220 V supply, an MCA of 30 A and an MOP of 45 A, and all five heads are powered through the interconnect cable. In a house whose panel is already loaded, this can avoid an electrical service upgrade.

When five zones aren't the right answer

We don't sell one zone more than you need. If the living room and dining room are largely open to each other, a single well-placed head serves both, and the four-zone version of the same outdoor unit is enough. On the other hand, a house that would need large heads in every room goes beyond what a single 42,000 BTU unit can reasonably distribute; two smaller systems, or a central ducted system, then make more sense. We present these options during the visit, with the reasons behind our recommendation.

Efficiency and controls

The system has a SEER2 of 21, an EER2 of 13 and an HSPF2 of 10, and runs on R-32 refrigerant. Wi-Fi is included: all five heads can be programmed from the KINGHOME PLUS app, which comes in handy with this many rooms, and voice control works with Google Assistant and Amazon Alexa. All the zones run in the same mode, heating or cooling, at any given time.

What we check before installing five zones

The on-site assessment of heating needs, room by room

With five heads, we never work from the total floor area. Each room is assessed: orientation, glass area, wall and ceiling insulation, occupancy. It's this assessment that sets the model of each head and confirms that the whole system stays within what the outdoor unit can serve.

Outdoor unit location

The unit measures 40.16 x 16.81 x 32.52 inches and produces 63 dB(A). We set it on a wall bracket or a raised pad above snow level, in a spot that lets us split the five line runs without unnecessary length, away from bedroom windows.

Five pairs of lines

Each head has its own pair of lines, 1/4 and 3/8 inch. We plan their routing to group the lines under a limited number of line covers on the outside walls, and each circuit is vacuumed separately. The ports on the outdoor unit and the interconnect cables are carefully labelled: mixing up two zones gives you a head that responds to the wrong room.

Five drains

Each head produces its own condensate. We favour gravity drainage on exterior walls and plan a condensate pump for any head that can't drain that way. This is spelled out in the quote, head by head.

LogisVert grant

This system has an indicative LogisVert amount of $5,340, calculated according to the LogisVert rule ($120 per 1,000 BTU/h of certified heating at -8.3 °C); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The references are AHRI 215708445 and ENERGY STAR ID 3798995.

Why choose AirGreen

  • Salaried refrigeration technicians, experienced with large multi-zone systems.
  • Civil liability insurance of $5,000,000.
  • Warranty registration done for you.
  • After-sales service that keeps the plan of your five zones on file.

Request your free estimate: we assess each of your five rooms, check your electrical panel and give you a detailed quote, head by head.

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.

16 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 44,500 BTU/h at −8 °C, 37,800 at −15 °C and 28,400 at −30 °C.

How many heads can I connect?

Up to 5 on this outdoor unit. This product is configured for 5 heads.

How much is the LogisVert grant?

$5,340. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, cold climate, ID 3798995.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 28,400 BTU/h with a COP of 1.5.

Is it noisy?

Indoors, the reference head goes down to 26 dB(A). Outdoors, 63 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.
