The Kinghome Ultra Heat 3 zones 60 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. it delivers 41,000 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $2,050 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
3 rooms, one outdoor unit.
Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 6 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately, also from your phone.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 60 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification.
A grant you can calculate, not guess.
The capacity at −8 °C. $50 per 1,000 BTU/h is the rate for ENERGY STAR heat pumps (guide v1.10).
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
Adding air conditioning and cutting back on the boiler, in three zones
Many large houses in Montréal, from Outremont to Ahuntsic, and many older houses in Laval, Longueuil, on the North Shore and on the South Shore are heated by a hot-water boiler and radiators, or by a furnace whose ducts don't serve every floor. They have two things in common: no air conditioning worth the name, and a heating system that works, but costs a lot to run all winter. This three-zone 60,000 BTU multi-zone heat pump is designed to be added to that existing system, not to replace it.

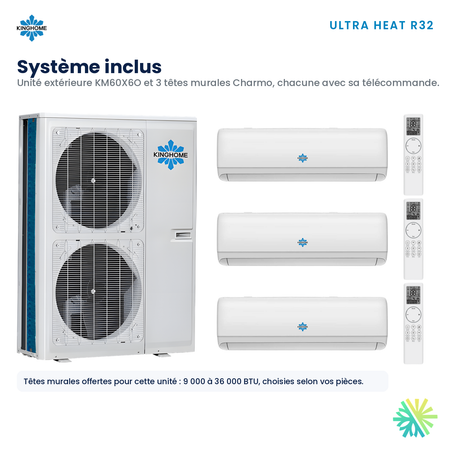

The principle is dual energy: the heat pump cools in summer and handles most of the heating in spring, in fall and on ordinary winter days; the boiler or furnace takes over the heating when the cold gets intense. One KM60X6O outdoor unit, three wall-mounted heads, three set points.
Why this model lends itself to dual energy
This unit is ENERGY STAR certified, but it does not carry the ENERGY STAR cold climate designation. We point this out because some sales materials attribute it to the whole range, while this model's certificates say otherwise. The consequence is concrete: its capacity in extreme cold drops more than that of the certified cold-climate models. Here are the values listed on NEEP (AHRI No. 218389037), for ductless heads:
- At -8.3 °C: 41,000 BTU/h, COP of 2.58.
- At -15 °C: 36,400 BTU/h, COP of 1.9.
- At -30 °C: 20,000 BTU/h, COP of 1.25, the heating operating limit.
In a house that already has a backup system in place, this profile isn't a flaw, it's a division of roles. At -8.3 °C, a COP of 2.58 is excellent: the heat pump delivers more than two and a half times the energy it uses, at the point in winter when that kind of weather is most common in the region. The colder it gets, the more sensible it becomes to let the boiler or furnace take over. The range includes a dual-energy control that links the heat pump to the thermostat and switches automatically to the backup source when the heat pump can no longer keep up.
So the boiler or furnace isn't pushed aside: it keeps its role as the heat source in extreme cold and as a safety net if the heat pump needs servicing. It simply runs far fewer hours each winter. For an appliance that already has several years of service behind it, that also means less wear. We check its condition during the visit, because dual energy only makes sense if the backup source is reliable.
If your home is already enrolled in a Hydro-Québec dual-energy rate, we check how the heat pump fits into the existing control before confirming the quote.
Three zones, one per floor
The compatible wall-mounted heads are the CHARMO KW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDI, KW30XQ21CDI and KW36XQ21CDI, from 9,000 to 36,000 BTU. In a multi-storey house heated with hot water, the most common layout is one head per floor: a 24,000 BTU head for the ground floor, an 18,000 BTU head for the bedroom floor and another 18,000 BTU head for the basement or the top floor. The total matches the outdoor unit's 60,000 BTU.
With one head per floor, summer cooling is taken care of in one go. In winter, each head brings its heat where the radiators are least effective, often on the top floor or in a room added after the house was built. Wi-Fi is included: all three zones can be programmed from the KINGHOME PLUS app or by voice with Google Assistant and Amazon Alexa. They always run in the same mode, heating or cooling.
Summer in a house without air conditioning
Houses with radiators have no ducts, and that's what makes central air so expensive to install in them. Three wall-mounted heads avoid opening up walls and ceilings. With a SEER2 of 21, an EER2 of 11.65 and an HSPF2 of 10, the system cools all three floors while using far less energy than a series of window air conditioners, without blocking the windows, and while removing humidity from the air.
What we check before installation
Electrical supply
The unit requires a 220 V supply, an MCA of 38 A and an MOP of 40 A, the highest demand in the series. In an older house, the original electrical service was sometimes designed for a home heated with oil or gas: we do a load calculation on the electrical service entrance before the quote. The three heads are powered through the interconnect cable, on a single circuit.
Outdoor unit location
The unit measures 35.43 x 13.39 x 49.61 inches, a vertical format with a small footprint, and produces 60 dB(A). In the backyard of an older house, we set it on a raised pad or a stand suited to its weight, above snow level, away from bedroom windows and from where the roof drains.
Lines in an older house
Each head has its own pair of lines, 1/4 and 1/2 inch depending on the port. Solid brick walls and old floors call for careful planning: we often prefer to run the lines under line covers on the back of the house rather than drill through several floors. Each circuit is vacuumed separately.
Drains
Each head has its own condensate drain. The thick walls of older houses make it easier to drain to the outside, as long as a steady slope is maintained. For a head on an interior wall, a condensate pump is included in the quote.
LogisVert grant
This system has an indicative LogisVert amount of $2,050, calculated according to the LogisVert rule ($50 per 1,000 BTU/h of certified heating at -8.3 °C, the rate for a unit without the cold climate designation); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The references are AHRI 218389037 and ENERGY STAR ID 4610343.
Why choose AirGreen
- Salaried refrigeration technicians, experienced with older houses and dual-energy systems.
- Civil liability insurance of $5,000,000.
- Warranty registration done for you.
- After-sales service that knows your installation.
Request your free estimate: we assess your current heating system, your three floors and your electrical panel, then propose the most sensible division of roles.
Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 41,000 BTU/h at −8 °C, 36,400 at −15 °C and 20,000 at −30 °C.
How many heads can I connect?
Up to 6 on this outdoor unit. This product is configured for 3 heads.
How much is the LogisVert grant?
$2,050. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, ID 4610343.
Down to what temperature does it heat?
Down to −30 °C. At −30 °C, it still delivers 20,000 BTU/h with a COP of 1.25.
Is it noisy?
Indoors, the reference head goes down to 26 dB(A). Outdoors, 60 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
