KINGHOME Ultra Heat R32 3-Zone Heat Pump | 48,000 BTU | Montréal, Laval, South Shore, North Shore

In stock
SKU: KM48X6O-999
48,000BTU/h · 3 heads
−30 °Cheats down to
$5,340LogisVert, indicative
ENERGY STAR® cold climateWi-Fi includedR-32Up to 5 heads
Talk to a technician · 514 316-2973
Outdoor unit KM48X6OPossible indoor models KW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDIAHRI 216772301· ENERGY STAR 3995741
In short

The Kinghome Ultra Heat 3 zones 48 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. ENERGY STAR cold-climate certified, it delivers 44,500 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $5,340 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

3 rooms, one outdoor unit.

Figures come from the manufacturer’s data and the AHRI certification.

AHRI 216772301
44,500BTU/h at −8 °C
−30 °Cstill heating
3 → 5heads, on the same unit
2.4COP at −8 °C
$5,340LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

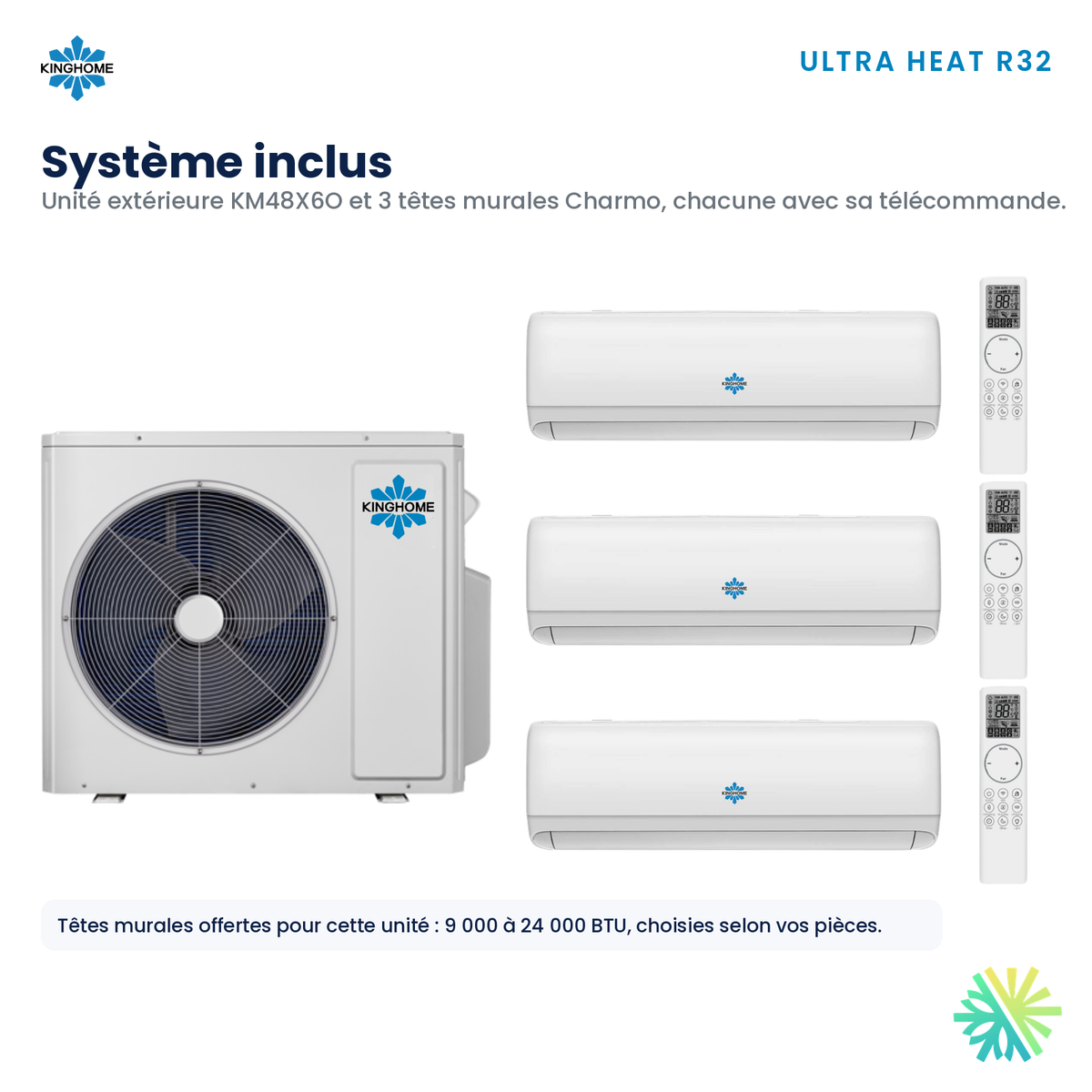

KM48X6O

Outdoor unit

One compressor for the whole house. It supplies up to 5 heads.

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
2
24,000BTU
23
30,000BTU
234
36,000BTU
234
42,000BTU
2345
48,000BTU
2Here45
60,000BTU
23456

Kinghome Ultra Heat 3 zones 48 000 · 3 zones

44,500 BTU/h
at −8 °C
$5,340
LogisVert

Up to 5 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 78 % of its rated capacity.

Tap a temperature: capacity, efficiency and the cost of one hour of heating.

07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification.

SEER2 · seasonal cooling21.0
Scale 1 – 30
HSPF2 · seasonal heating10.0
Scale 1 – 15
EER2 · cooling in peak heat12.0
Scale 1 – 20
COP at −15 °C2.1
Scale 0 – 4
09 · LogisVert grant

A grant you can calculate, not guess.

44,500 BTU/h÷ 1,000 ×$120=$5,340

The capacity at −8 °C. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).

Set for this system (AHRI 216772301). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone3 wall units
On the wall1 outdoor unit3 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$5,340 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

11 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

32.52 in
KM48X6ODepth 16.81 in
40.16 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
45 A max. breaker
MCA 30 A · 220 V
Outdoor unit
Head 1
Head 2
Head 3
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 30 A, 45 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
12 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

26
41
69
20 dB(A)3040506070
26 Reference head, lowest speed41 Reference head, highest speed69 Outdoor unit
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
13 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)48,000 BTUSheet
SEER2 (seasonal cooling efficiency)21.0AHRI
EER2 (instant cooling efficiency)12.0AHRI
HSPF2 (seasonal heating efficiency, region IV)10.0AHRI
Heating
Capacity at −8 °C44,500 BTU/h · COP 2.4Sheet
Capacity at −15 °C37,800 BTU/h · COP 2.1Sheet
Capacity at −30 °C (max.)28,400 BTU/h · COP 1.5Sheet
Heats down to−30 °CSheet
Zones and heads
Zones on this product3 Zones (Triple Zone)Sheet
Maximum zones5 ZonesSheet
Possible indoor modelsKW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDISheet
Indoor dimensions (W × D × H)32.87 x 7.87 x 10.83 inSheet
Vertical louversAutoSheet
Horizontal louversAutoSheet
Airflow (reference head)353 CFMSheet
Indoor sound (reference head)26 – 41 dB(A)Sheet
Installation
Outdoor unit (W × D × H)40.16 x 16.81 x 32.52 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound69 dB(A)Sheet
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)30 ASheet
MOP (maximum overcurrent protection)45 ASheet
RefrigerantR-32Sheet
Wi-FiInclusSheet
Certifications and warranty
AHRI216772301AHRI
ENERGY STARYes · cold climate · ID 3995741Sheet
LogisVert grant (indicative)$5,340Sheet
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 6 yrsSheet
AirGreen extended warrantyPossibleSheet
14 · Official brochures

The manufacturer’s documentation, as PDF.

15 · Description

Everything we have written about this system.

A house, a glassed-in addition and three comfort zones

We often see the same house: an original structure in good shape, with an added four-season sunroom, a family room surrounded by windows or an addition with a large patio door. That new room is the most pleasant one in the house in spring and the most uncomfortable the rest of the year: too hot as soon as the sun comes out, too cold in January, and the existing heating system was never designed for it. This three-zone 48,000 BTU multi-zone heat pump is built around that scenario: one large head for the glassed-in room, and two heads for the main rooms of the house.

We install it in houses in Laval, on the North Shore, on the South Shore, in Longueuil and in western Montréal, wherever an addition has changed the thermal balance of the house.

Why the 48,000 BTU for this type of house

Glass areas drive up the cooling load far more than the heating load. That's exactly where this model stands out: its nominal cooling capacity is higher than that of the lower-capacity model in the same series, while their certified heating capacities are identical. If your addition is mainly hard to heat, the smaller model may be enough, and we'll tell you so.

One zone unlike the others

This KM48X6O outdoor unit accepts the CHARMO wall-mounted heads KW09XQ19CDI (9,000 BTU), KW12XQ19CDI (12,000 BTU), KW18XQ19CDI (18,000 BTU) and KW24XQ19CDI (24,000 BTU). The typical layout for this scenario is a 24,000 BTU head for the glassed-in room and two 12,000 BTU heads for the living room and the primary bedroom, for a total of the outdoor unit's 48,000 BTU.

A glassed-in room doesn't behave like a closed room. Its load varies enormously over the course of a single day: none in the morning, peaking in late afternoon when the sun hits the glass. With a zone of its own, the sunroom head ramps up and down without throwing off the rest of the house. The living room and the bedroom keep their set point, whatever the afternoon weather. Wi-Fi is included and each zone can be programmed from the KINGHOME PLUS app or by voice with Google Assistant and Amazon Alexa.

Placing a head in a room with almost no walls

The practical challenge with a sunroom is finding a solid wall. We usually choose the wall shared with the original house: it's sturdy, it makes it easier to run the lines, and the head blows toward the windows, where heat escapes in winter and comes in during summer. The automatic vertical and horizontal louvres spread the air across the full width of the room. In the house, the living room head is placed so it also covers the entrance or the hallway, and the bedroom head above the door or on the wall opposite the bed, to avoid a direct draft while you sleep. Each location is approved with you before installation day, taking furniture, curtains and light fixtures into account.

What winter asks of a glassed-in room

  • At -8.3 °C: 44,500 BTU/h, COP of 2.4.
  • At -15 °C: 37,800 BTU/h, COP of 2.1.
  • At -30 °C: 28,400 BTU/h, COP of 1.5, the heating operating limit.

These values listed on NEEP (AHRI No. 216772301) apply to ductless heads, and the unit carries the ENERGY STAR cold climate designation. A four-season sunroom loses a lot of heat through its glass on the coldest nights. We assess the quality of the glazing and the floor insulation: if the room sits on piers with no insulated floor, backup heat is still needed there in extreme cold, and we include it in the quote rather than promise the impossible.

Efficiency

The system has a SEER2 of 21, an EER2 of 12 and an HSPF2 of 10, with R-32 refrigerant. The EER2 reflects efficiency during the hottest hours, the ones that matter for a glassed-in room facing south or west. All three heads dehumidify while they cool, and the sunroom head limits condensation on the windows in summer. All three zones always run in the same mode, heating or cooling.

What we check before installation

Electrical supply

The outdoor unit requires a 220 V supply, an MCA of 30 A and an MOP of 45 A. The three heads are powered through the interconnect cable, on a single circuit. We check the panel, especially when the addition has already added circuits.

Location and noise

The unit measures 40.16 x 16.81 x 32.52 inches and produces 69 dB(A), a level that calls for some care. We avoid placing it right against the sunroom or near the deck, where you spend your summer evenings. It's installed on a wall bracket or a raised pad, above snow level, with vibration isolators, and defrost water must drain away from walkways.

Running lines in an addition

Each head has its own pair of lines, 1/4 and 3/8 inch. An addition often has a different structure from the original house: a thin framed wall, a floor on piers, a flat roof. We map out the route before the quote so the sunroom lines run cleanly, under line covers or inside the structure, without weakening the airtightness of the building envelope.

Drains

The head in a glassed-in room produces a lot of condensate in summer. Its drain must exit with a steady slope, away from the addition's foundations. For heads on an interior wall, a condensate pump is planned if needed.

LogisVert grant

This system has an indicative LogisVert amount of $5,340, calculated according to the LogisVert rule ($120 per 1,000 BTU/h of certified heating at -8.3 °C); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The references are AHRI 216772301 and ENERGY STAR ID 3995741.

Why choose AirGreen

  • Salaried refrigeration technicians, no improvised subcontracting.
  • Civil liability insurance of $5,000,000.
  • Warranty registration done for you.
  • After-sales service that keeps your home's file.

Request your free estimate: we assess your addition and the main rooms, then propose the three-zone layout that really fits.

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.

16 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 44,500 BTU/h at −8 °C, 37,800 at −15 °C and 28,400 at −30 °C.

How many heads can I connect?

Up to 5 on this outdoor unit. This product is configured for 3 heads.

How much is the LogisVert grant?

$5,340. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, cold climate, ID 3995741.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 28,400 BTU/h with a COP of 1.5.

Is it noisy?

Indoors, the reference head goes down to 26 dB(A). Outdoors, 69 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.

AirGreen

A multi-zone system is planned room by room. At your home.

We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.

RBQ 5645-9605-01Ventilation 15.8, refrigeration 15.10, electrical 16
We handle the circuitOur licence covers the electrical work
LogisVert : $5,340Indicative amount
Beware of scamsHydro-Québec does no phone or door-to-door solicitation for LogisVert
SourcesCosts: Hydro-Québec Rate D, 11.142 ¢/kWh (second tier, since 1 April 2026). Amounts shown are estimates; only the responsible bodies confirm the grant awarded.
