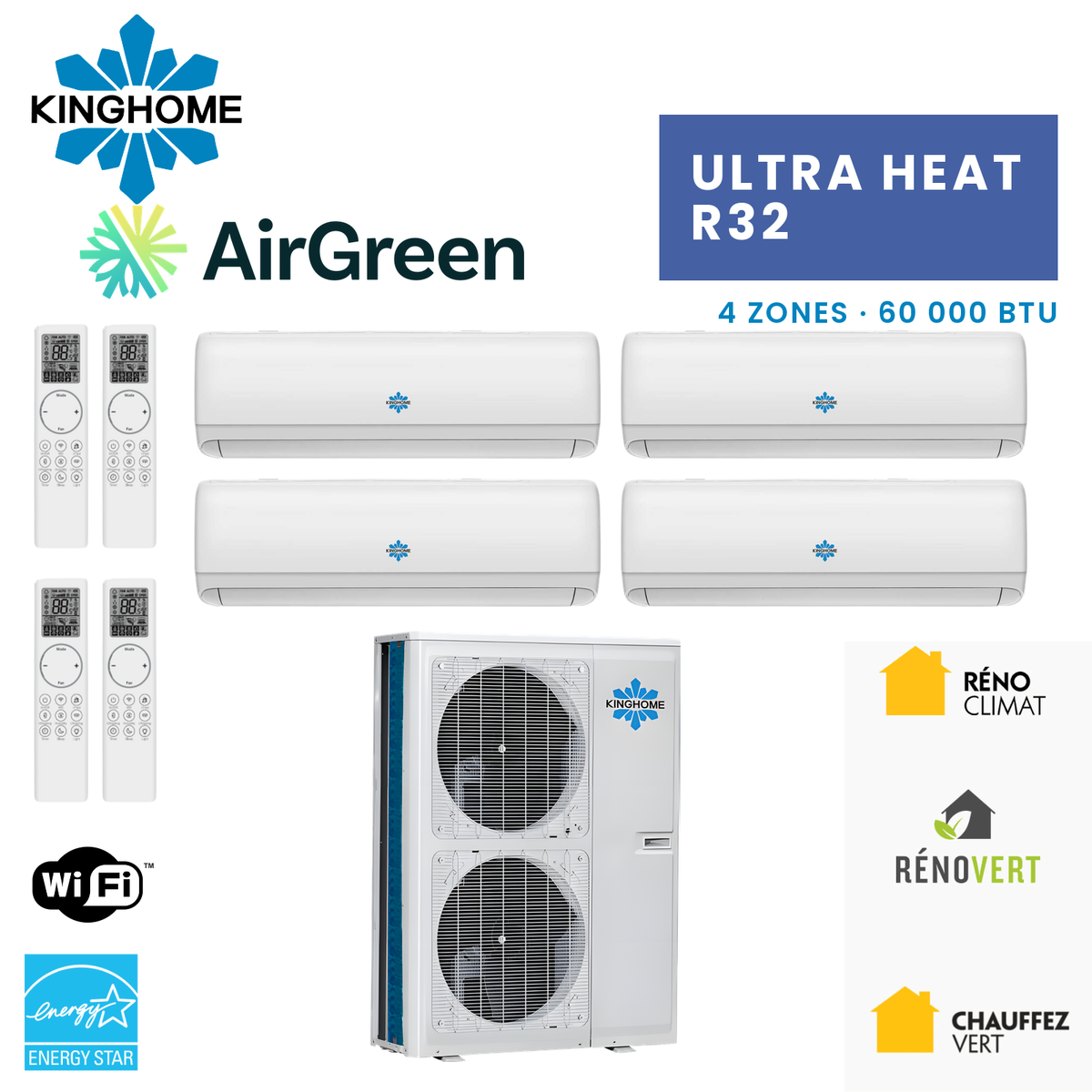

KINGHOME Ultra Heat R32 4-Zone Heat Pump | 60,000 BTU | Montréal, Laval, South Shore, North Shore

In stock
SKU: KM60X6O-9999
60,000BTU/h · 4 heads
−30 °Cheats down to
$2,050LogisVert, indicative
ENERGY STAR®Wi-Fi includedR-32Up to 6 heads
Talk to a technician · 514 316-2973
Outdoor unit KM60X6OPossible indoor models KW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDI, KW30XQ21CDI, KW36XQ21CDIAHRI 218389037· ENERGY STAR 4610343
In short

The Kinghome Ultra Heat 4 zones 60 000 multi-zone heat pump heats and cools 4 rooms with a single outdoor unit. it delivers 41,000 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $2,050 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

4 rooms, one outdoor unit.

Figures come from the manufacturer’s data and the AHRI certification.

AHRI 218389037
41,000BTU/h at −8 °C
−30 °Cstill heating
4 → 6heads, on the same unit
2.58COP at −8 °C
$2,050LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

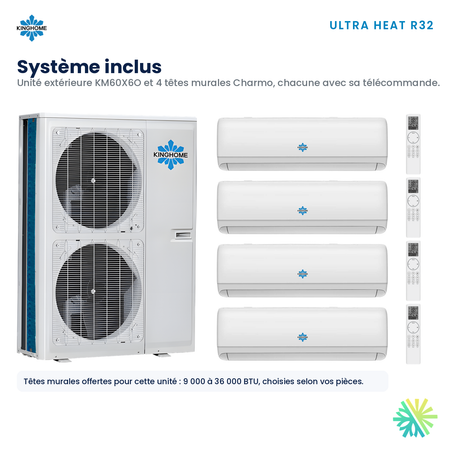

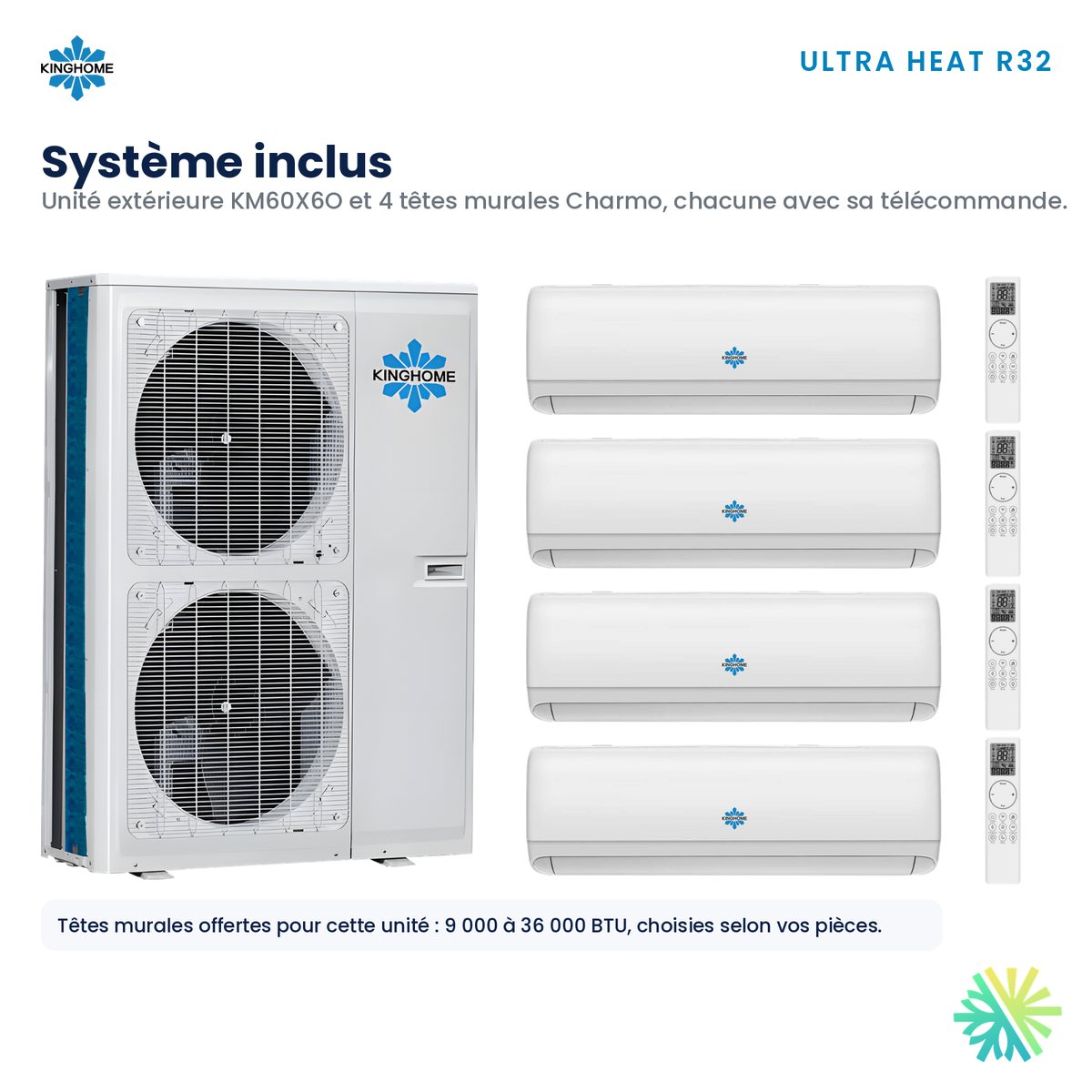

KM60X6O

Outdoor unit

One compressor for the whole house. It supplies up to 6 heads.

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
2
24,000BTU
23
30,000BTU
234
36,000BTU
234
42,000BTU
2345
48,000BTU
2345
60,000BTU
23Here56

Kinghome Ultra Heat 4 zones 60 000 · 4 zones

41,000 BTU/h
at −8 °C
$2,050
LogisVert

Up to 6 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 60 % of its rated capacity.

Tap a temperature: capacity, efficiency and the cost of one hour of heating.

07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification.

SEER2 · seasonal cooling21.0
Scale 1 – 30
HSPF2 · seasonal heating10.0
Scale 1 – 15
EER2 · cooling in peak heat11.7
Scale 1 – 20
COP at −15 °C1.9
Scale 0 – 4
09 · LogisVert grant

A grant you can calculate, not guess.

41,000 BTU/h÷ 1,000 ×$50=$2,050

The capacity at −8 °C. $50 per 1,000 BTU/h is the rate for ENERGY STAR heat pumps (guide v1.10).

Set for this system (AHRI 218389037). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone4 wall units
On the wall1 outdoor unit4 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$2,050 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

11 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

49.61 in
KM60X6ODepth 13.39 in
35.43 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
40 A max. breaker
MCA 38 A · 220 V
Outdoor unit
Head 1
Head 2
Head 3
Head 4
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 1/2 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 38 A, 40 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
12 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

26
41
60
20 dB(A)3040506070
26 Reference head, lowest speed41 Reference head, highest speed60 Outdoor unit
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
13 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)60,000 BTUSheet
SEER2 (seasonal cooling efficiency)21.0AHRI
EER2 (instant cooling efficiency)11.7AHRI
HSPF2 (seasonal heating efficiency, region IV)10.0AHRI
Heating
Capacity at −8 °C41,000 BTU/h · COP 2.58Sheet
Capacity at −15 °C36,400 BTU/h · COP 1.9Sheet
Capacity at −30 °C (max.)20,000 BTU/h · COP 1.25Sheet
Heats down to−30 °CSheet
Zones and heads
Zones on this product4 Zones (Quad Zone)Sheet
Maximum zones6 ZonesSheet
Possible indoor modelsKW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDI, KW30XQ21CDI, KW36XQ21CDISheet
Indoor dimensions (W × D × H)32.87 x 7.87 x 10.83 inSheet
Vertical louversAutoSheet
Horizontal louversAutoSheet
Airflow (reference head)353 CFMSheet
Indoor sound (reference head)26 – 41 dB(A)Sheet
Installation
Outdoor unit (W × D × H)35.43 x 13.39 x 49.61 inSheet
Line sizes1/4 - 1/2 inSheet
Outdoor sound60 dB(A)Sheet
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)38 ASheet
MOP (maximum overcurrent protection)40 ASheet
RefrigerantR-32Sheet
Wi-FiInclusSheet
Certifications and warranty
AHRI218389037AHRI
ENERGY STARYes · ID 4610343Sheet
LogisVert grant (indicative)$2,050Sheet
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 6 yrsSheet
AirGreen extended warrantyPossibleSheet
14 · Official brochures

The manufacturer’s documentation, as PDF.

15 · Description

Everything we have written about this system.

A large two-storey house, a tall, slim outdoor unit

The large two-storey houses built over the last few decades in Laval, on the North Shore and on the South Shore often have two features that make adding a heat pump harder: large glazed areas that push up the cooling load, and a narrow side setback between the house and the neighbouring lot, where a wide unit won't fit. This 60,000 BTU, four-zone multi-zone heat pump addresses both. Its KM60X6O outdoor unit is taller than it is wide, and its nominal cooling capacity is the highest in the series.

We install it in houses with four or more bedrooms, with an open main floor and an upper floor of bedrooms, as well as in large houses in Montréal and Longueuil renovated with wide openings onto the backyard.

A format designed for narrow setbacks

The unit measures 35.43 x 13.39 x 49.61 inches. Its shallow depth and reduced width let it fit along a side wall, where a wider unit would block the way. Its sound level is 60 dB(A), lower than that of some lower-capacity models in the same lineup. In a side setback, that matters: the neighbour's window is often just a few metres away.

Four heads: the typical split

This unit accepts the CHARMO wall-mounted heads KW09XQ19CDI, KW12XQ19CDI, KW18XQ19CDI, KW24XQ19CDI, KW30XQ21CDI and KW36XQ21CDI, from 9,000 to 36,000 BTU. In a large two-storey house, the most common combination is:

  • an 18,000 BTU head for the living room and the open area;
  • an 18,000 BTU head for the kitchen and dining room;
  • a 12,000 BTU head for the main bedroom;
  • a 12,000 BTU head for the landing and the secondary bedrooms, doors open.

The total comes to the outdoor unit's 60,000 BTU. The larger share on the main floor reflects the reality of big windows and the patio door, which drive the summer load. The on-site assessment of heating and cooling needs, room by room, adjusts this split to your house. Wi-Fi is included: all four zones can be controlled from the KINGHOME PLUS app or by voice control with Google Assistant and Amazon Alexa. They always run in the same mode, heating or cooling.

Summer first

In these houses, summer is often the toughest season. The system is rated at 21 SEER2 and 11.65 EER2, with a twin rotary compressor and an electronic expansion valve, and uses R-32 refrigerant. The heads dehumidify while they cool: a large open area stays cool and dry, without the icy draft of an oversized air conditioner that keeps cycling on and off.

Winter, without a cold climate designation

We need to say it plainly: this unit is ENERGY STAR certified, but it does not carry the ENERGY STAR cold climate designation, unlike the lower-capacity models in the same series. The values listed on NEEP (AHRI No. 218389037), with ductless heads, are as follows:

  • At -8.3 °C: 41,000 BTU/h, COP of 2.58.
  • At -15 °C: 36,400 BTU/h, COP of 1.9.
  • At -30 °C: 20,000 BTU/h, COP of 1.25, the heating operating limit.

The 10 HSPF2 is still good over the whole season, but in extreme cold, capacity drops more sharply than on cold-climate certified models. For a large house, the existing heating, baseboards or a furnace, should therefore stay in place and take over on the coldest nights. The lineup offers a dual-energy control to automate that switchover.

When we'll suggest something else

If your priority is lowering your heating bill rather than cooling a large house, this model isn't necessarily the best choice. Two smaller-capacity systems, certified for cold climates, or a smaller model in the series can offer better capacity in extreme cold and a different rebate. We compare these options with you during the visit, with ENERGY STAR and NEEP figures to back them up.

Maintaining four zones

A four-head system needs simple but regular maintenance. Each head's filters come out without tools and rinse with water; a clogged filter cuts the airflow, and with it the room's capacity. Once a year, we recommend a full maintenance: cleaning the indoor coils, checking the drains, inspecting the outdoor unit and its support. On a large house, it's the best way to keep all four zones performing like they did the first year.

What we check before the installation

The electrical supply

The unit requires a 220 V supply, an MCA of 38 A and an MOP of 40 A. All four heads are powered through the interconnecting cable, on a single circuit. In a large house where an EV charger or a pool heat pump has already been added, we redo the electrical panel load calculation before the quote.

Placement in the side setback

The unit sits on a raised stand or a support suited to its weight, above snow level, with the manufacturer's required clearance all around. In a side setback, we also make sure snow from the roof doesn't fall on it and that the defrost water doesn't freeze in the walkway.

Piping to two floors

Each head has its own pair of lines, 1/4 and 1/2 inch depending on the port. The upstairs heads are connected with lines run under a line cover or through the attic, insulated along their entire length. Each circuit is vacuumed separately.

The drains

Four heads, four drains, with a steady slope to the outside. For an upstairs head on an interior wall, a condensate pump is planned and included in the quote.

LogisVert assistance

The indicative LogisVert amount for this system is $2,050, calculated using the LogisVert rule ($50 per 1,000 BTU/h of certified heating capacity at -8.3 °C, the rate for a unit without a cold climate designation); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The references are AHRI 218389037 and ENERGY STAR ID 4610343.

Why go with AirGreen

  • Salaried refrigeration technicians, not improvised subcontracting.
  • Civil liability insurance of $5,000,000.
  • Warranty registration done for you.
  • After-sales service that knows your installation.

Ask for your free estimate: we measure your side setback, assess the heating needs of your four zones on site and give you a frank comparison of this model with the other options.

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.

16 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 41,000 BTU/h at −8 °C, 36,400 at −15 °C and 20,000 at −30 °C.

How many heads can I connect?

Up to 6 on this outdoor unit. This product is configured for 4 heads.

How much is the LogisVert grant?

$2,050. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, ID 4610343.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 20,000 BTU/h with a COP of 1.25.

Is it noisy?

Indoors, the reference head goes down to 26 dB(A). Outdoors, 60 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.
