The Kinghome Ultra Heat 4 zones 48 000 multi-zone heat pump heats and cools 4 rooms with a single outdoor unit. ENERGY STAR cold-climate certified, it delivers 44,500 BTU/h at −8 °C, heats down to −30 °C and has an indicative LogisVert amount of $5,340 (only Hydro-Québec confirms the assistance granted). Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

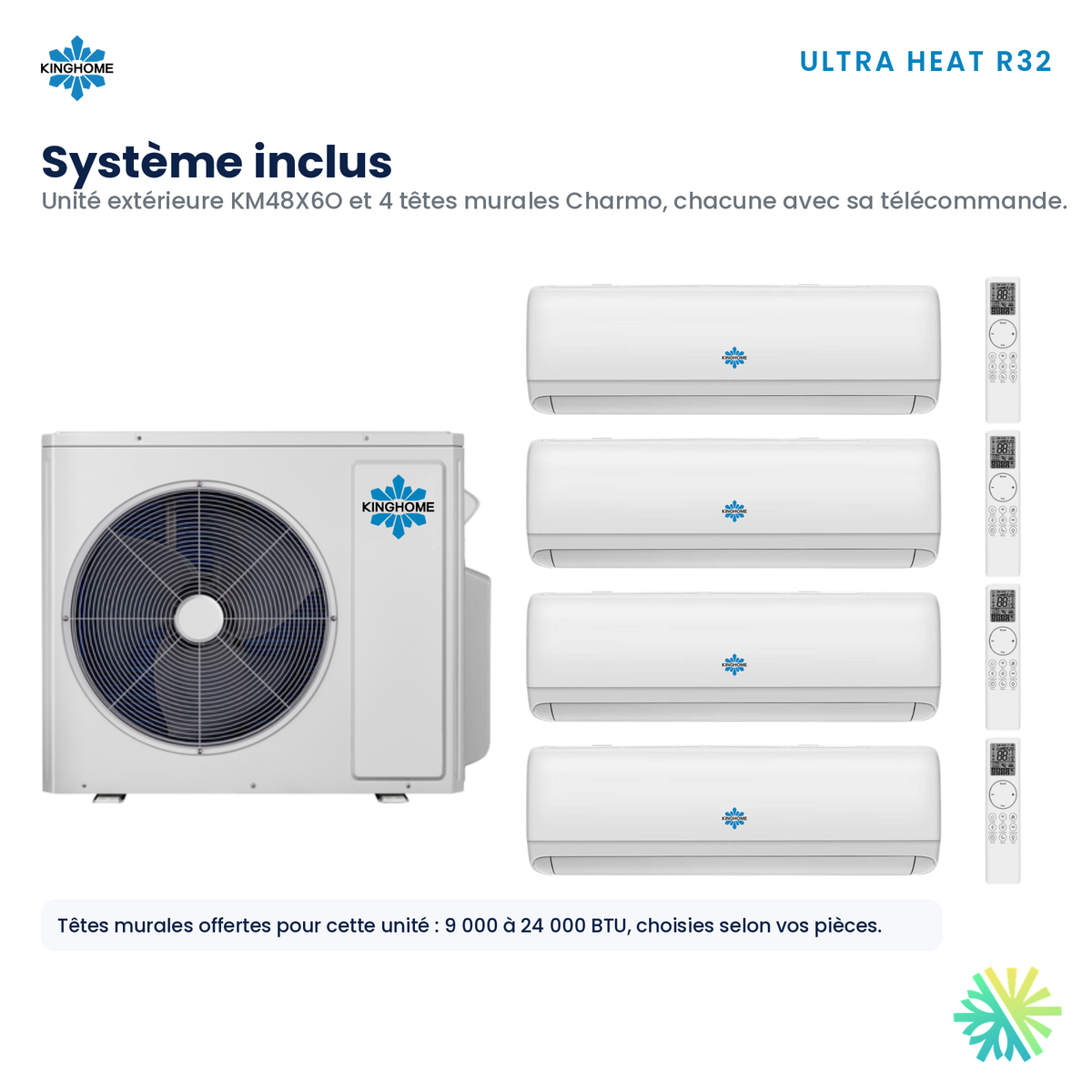

4 rooms, one outdoor unit.
Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 5 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately, also from your phone.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 78 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification.
A grant you can calculate, not guess.
The capacity at −8 °C. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
Four rooms of the same size, a narrow lot
Townhouses, semi-detached houses and row cottages have something in common: rooms of similar size spread over two or three levels, and a narrow lot where the outdoor unit ends up a few steps from the neighbour's yard. This 48,000 BTU, four-zone multi-zone heat pump handles both constraints at once. It serves four rooms with four identical heads and puts only one outdoor unit on the lot, instead of four units lined up along the fence.
It's a setup we install in the townhouse and semi-detached neighbourhoods of Montréal, Laval and Longueuil, as well as in newer residential developments on the North Shore and the South Shore, where side setbacks are kept to a minimum.
Four 12,000 BTU heads
The KM48X6O outdoor unit accepts the CHARMO wall-mounted heads KW09XQ19CDI (9,000 BTU), KW12XQ19CDI (12,000 BTU), KW18XQ19CDI (18,000 BTU) and KW24XQ19CDI (24,000 BTU). In a townhouse, the simplest split is four 12,000 BTU heads: the living room, the kitchen and dining room, the main bedroom and the second bedroom. The total matches the outdoor unit's 48,000 BTU exactly.
Identical heads have a practical advantage: same filters, same maintenance, same behaviour from one room to the next. When one room is clearly smaller, an office for example, a 9,000 BTU head serves it better. The on-site assessment of heating needs, room by room, confirms that choice before the quote.
The number to look at first: 69 dB(A)
We'd rather bring this up right away. This model's outdoor unit is rated at 69 dB(A), the highest level in the Ultra Heat multi-zone lineup. On a large lot, that's no difficulty at all. On a townhouse lot, choosing the spot becomes a technical decision in its own right:
- Distance from windows. We avoid walls under a bedroom window, yours or your neighbour's.
- Reflective surfaces. A corner between two brick walls amplifies the sound; an open wall disperses it.
- Vibration. The wall bracket or stand is installed with isolators so the wall doesn't carry the noise inside.
- Municipal bylaws. Noise and setback requirements vary by city and borough; we check them before the quote.
If the available spot really is too tight, we'll tell you, and we'll present a quieter, lower-capacity solution.
One unit instead of four
Four separate wall-mounted heat pumps would mean four compressors, four outdoor fans and four sources of noise on a lot that's already short on space. They would also need four circuits at the panel and four wall brackets on the house. A multi-zone system puts everything in a single unit, which can go in the best spot on the lot. The trade-off is that a breakdown of the outdoor unit affects all four zones at once: that's why we keep the existing heating in place, and why annual maintenance of the outdoor unit is part of our recommendations.
One set point per room
In a house on several levels, each zone is controlled independently. The upstairs bedrooms, which build up heat, can stay cooler than the main floor. Wi-Fi is included: all four heads can be scheduled from the KINGHOME PLUS app or by voice control with Google Assistant and Amazon Alexa. All four zones always run in the same mode, heating or cooling.
Published performance
- At -8.3 °C: 44,500 BTU/h, COP of 2.4.
- At -15 °C: 37,800 BTU/h, COP of 2.1.
- At -30 °C: 28,400 BTU/h, COP of 1.5, the heating operating limit.
These values are listed on NEEP (AHRI No. 216772301). The unit carries the ENERGY STAR cold climate designation, with 21 SEER2, 12 EER2 and 10 HSPF2, and uses R-32 refrigerant. A townhouse with shared walls loses less heat than a detached house of the same size, since its party walls face heated units. For this type of building, these capacities cover the vast majority of the winter, and the existing heating stays in place as backup for the most extreme nights. Worth noting: in heating, the ENERGY STAR and NEEP values are the same as those of the next smaller model in the series; where this model stands apart is in cooling.
What we check before the installation
The electrical supply
The unit requires a 220 V supply, an MCA of 30 A and an MOP of 45 A. All four heads are powered through the interconnecting cable, on a single circuit. In a townhouse, the panel is often in the basement, far from the outdoor location: we include the power cable route and the outdoor disconnect in the quote.
Where the outdoor unit goes
The unit measures 40.16 x 16.81 x 32.52 inches. On top of the noise precautions, it has to be installed above snow level, preferably on a wall bracket, out of the way of snow sliding off the roof. Defrost water must not run onto a shared sidewalk or a shared driveway, where it would freeze.
Piping over several levels
Each head has its own pair of 1/4 and 3/8 inch lines. In a townhouse, we group the four pairs under one line cover on the back wall, then route them to each level. Each circuit is vacuumed separately before the valves are opened.
The drains
Four heads, four drains. On a party wall, draining to the outside is impossible: the head then has to go on an exterior wall or be fitted with a condensate pump. We spell out that choice head by head in the quote.
LogisVert assistance
The indicative LogisVert amount for this system is $5,340, calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C); eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The references are AHRI 216772301 and ENERGY STAR ID 3995741.
Why go with AirGreen
- Salaried refrigeration technicians who know the constraints of urban lots.
- Civil liability insurance of $5,000,000.
- Warranty registration done for you.
- After-sales service that knows your installation.
Ask for your free estimate: we visit your lot, choose the spot for the outdoor unit with you and give you a clear quote for your four zones.
Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 44,500 BTU/h at −8 °C, 37,800 at −15 °C and 28,400 at −30 °C.
How many heads can I connect?
Up to 5 on this outdoor unit. This product is configured for 4 heads.
How much is the LogisVert grant?
$5,340. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3995741.
Down to what temperature does it heat?
Down to −30 °C. At −30 °C, it still delivers 28,400 BTU/h with a COP of 1.5.
Is it noisy?
Indoors, the reference head goes down to 26 dB(A). Outdoors, 69 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.
